Hikmicro M31T thermal imaging camera – powerful and professional - HM-TP23A-10QF/W-M31T

The Hikmicro M31T thermal imaging camera is an advanced thermal inspection tool specifically designed for applications where high temperature accuracy and reliable measurements in a critical temperature range are important. Thanks to the combination of high-quality thermal imaging technology and extensive analysis capabilities, this camera is ideal for professional use in medical, veterinary, or diagnostic contexts.

Razor-sharp thermal images with precision measurement

The Hikmicro M31T delivers thermal images with a thermal resolution of 384 × 288 pixels, thereby offering clear and high-contrast thermographic images. Unique compared to the standard M31 version is the temperature accuracy of ±0.5°C within the range of approx. 5–40°C, making this camera particularly suitable for accurate temperature measurements in sensitive applications such as body or animal temperature detection.

Text continues below the photo

User-friendly and professional design

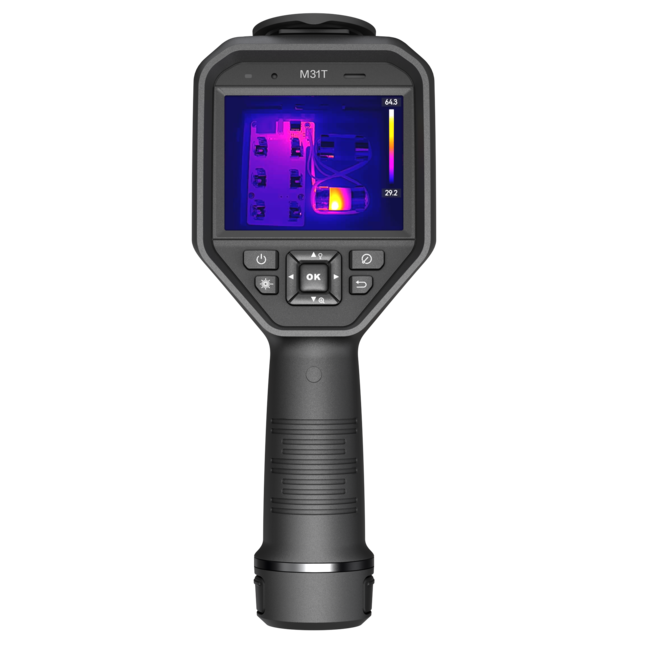

The M31T is equipped with a bright 3.5″ LCD touchscreen interface and robust build and connectivity options such as Wi-Fi and Bluetooth. The camera supports extensive annotation capabilities (text, voice, tags) and stores images and videos via a microSD card. Thanks to the IP54 housing, it is resistant to dust and splashes, ideal for professional use in varying conditions.

Applications of the HIKMICRO M31T

• Diagnostic inspections: Accurate temperature measurements in environments where small deviations are important.
• Medical & veterinary applications: Detection of temperature patterns for medical analysis, rehabilitation, animal research, and clinical screening

Focusable lens with manual focus – maximum control

Just like with the regular M31, the M31T allows you to manually focus on the subject, giving you maximum control over image quality regardless of inspection distance or target type. This makes the camera suitable for detailed work as well as versatile use cases.

Text continues below the photo

Key features:

- Thermal resolution 384×288 (110,592 pixels)
- Thermal sensitivity of <0.035°C (NETD <35mK)
- Focusable lens
- Field of view FOV 41.1°×30.5°
- Temperature measurement range 5°C +40°C
- Absolute accuracy 0.5°C
- 1-Tap Level & Span
- 30 Hz refresh rate
- 3.5' LCD touchscreen
- Centerspot, hotspot, coldspot, line, area

Specifications:

- Digital Zoom 1x / 2x / 4x / 8x
- Picture Mode: Thermal, Visual, Fusion, Picture-in-Picture
- Color palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
- Storage media Removable 64GB Micro SD Card
- Laser pointer Yes
- Wi-Fi 2.4 and 5 GHz
- Bluetooth 4.2
- Text comment up to 200 characters
- Voice commentary up to 60 seconds
- Battery life 4 hours
- IP Class IP54
- USB TYPE-C Interface
- Weight ± 660 grams
- Dimensions 244mm × 100mm × 104mm

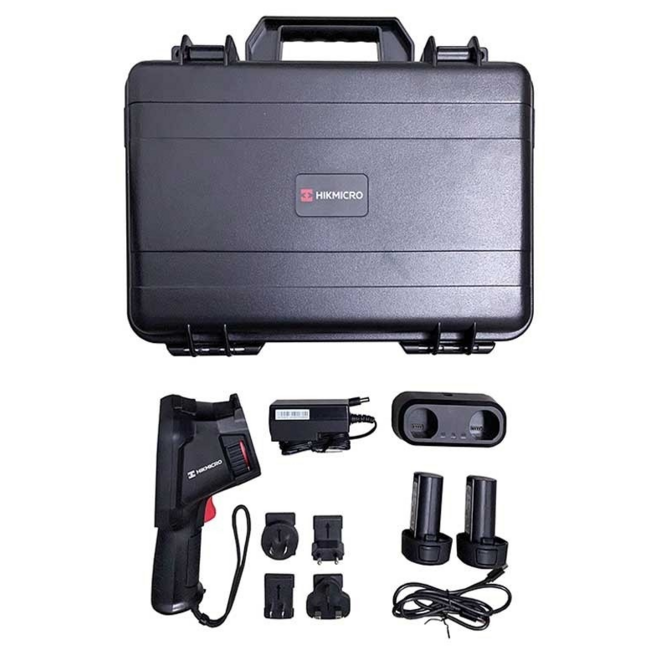

Included in delivery:

- Robust Suitcase
- Hikmicro M31T Thermal Imaging Camera
- Quick start guide
- Adapters
- USB cable
- Power Adapter
- 2x Li-ion interchangeable battery
- Charging station for 2 batteries
- Wristband
- 64 GB micro SD card
