Handheld thermal imaging camera from HIKVISION / HIKMICRO with a thermal resolution of 192x144 pixels, a sensitivity of <0.04°C and a focusable lens. Read more.

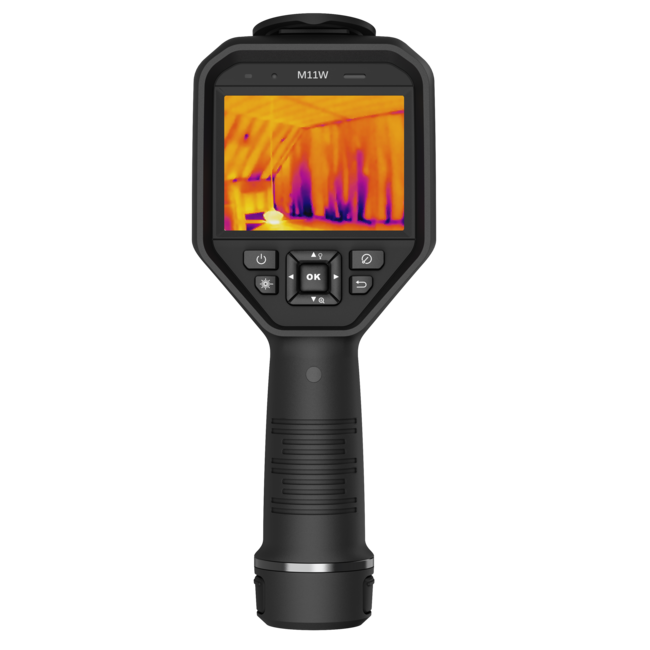

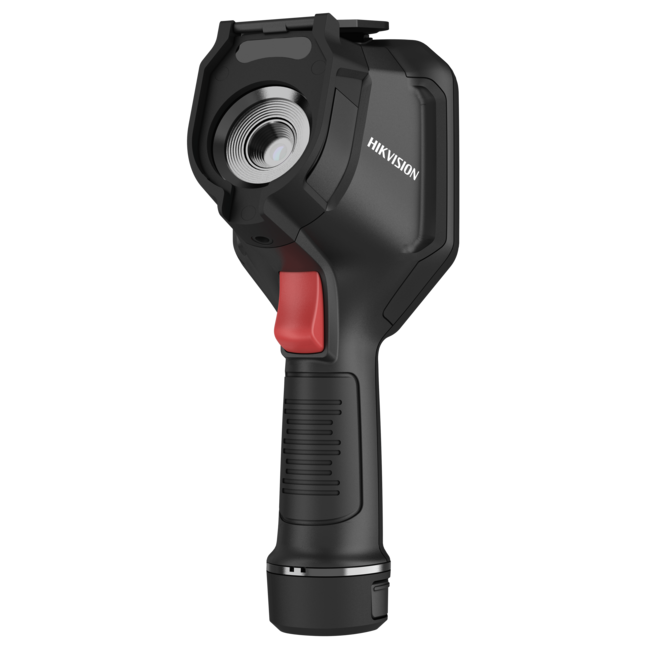

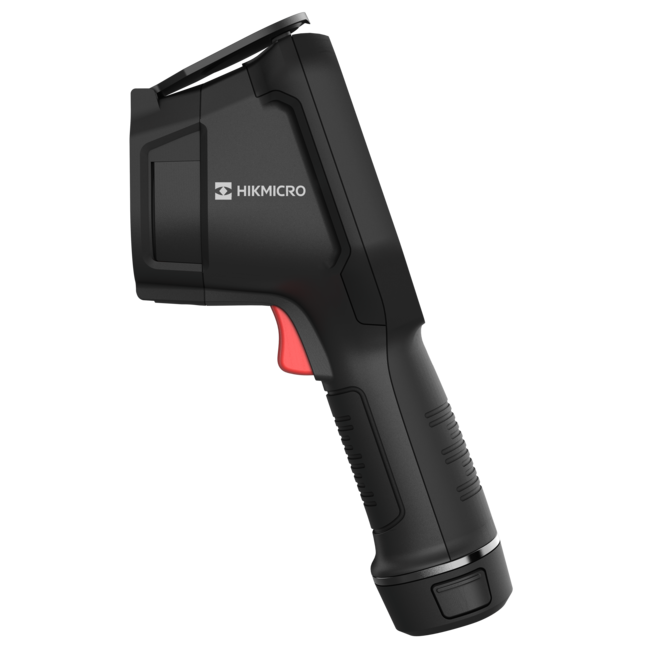

The HIKMICRO M11W is an easy-to-use thermal imaging camera specifically designed for hobbyists and semi-professionals who want to quickly detect temperature differences. Its robust thermal performance, wide viewing angle, and ease of use make it ideal for all-around construction and installation inspections.
The HIKMICRO M11W is equipped with a 192 × 144 VOx thermal detector and delivers clear and stable thermal images. Temperature differences are clearly displayed, quickly revealing thermal problems such as heat loss, overheating, or insulation defects. The M11W is suitable for preventive inspections and detecting existing anomalies.
The ergonomic housing ensures a comfortable grip and comfortable use during longer inspections. The M11W is designed for daily use in a variety of work environments. With its clear touchscreen and intuitive operation, every user can get started quickly and effectively.
Text continues below the photo
Thanks to the wide-angle lens (W), a larger area can be inspected at once. This makes the HIKMICRO M11W highly efficient for checking walls, floors, ceilings, and technical installations without constantly having to step back.
The HIKMICRO M11W features multiple color palettes, adjustable measurement functions, and real-time temperature display. Thermal images can be easily stored and used for reporting and documentation, making the camera ideal for professional use and customer reports.
User-friendly thermal imaging camera
Wide viewing angle for quick inspections
Robust and portable
Suitable for construction and maintenance
Building Inspections: Detect heat loss, air leaks, and insulation problems in homes and buildings.
Maintenance: Check lines and components for overheating.
Preventive controls: Identify potential problems before failures or damage occur.
Text continues below the photo
- Thermal resolution 192 × 144 (27,648 pixels)
- Thermal sensitivity <0.04°C (NETD <40mK)
- Focus: fixed
- Field of view (FOV) 50° × 37.2°
- Temperature measurement range -20°C to 550°C
- Absolute accuracy ±2°C or ±2%
- 25 Hz frame rate
- 3.5” LCD touchscreen
- User-adjustable measurement presets
- Measurement functions: center spot, hotspot, cold spot, line and area
- Digital zoom 1× / 2× / 4× / 8×
- Picture modes: thermal, visual, fusion, picture-in-picture
- Color palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
- Storage: removable micro SD card (16 GB)
- Laser pointer: yes
- Wi-Fi 2.4 & 5 GHz
- Bluetooth 4.2
- Text comment up to 200 characters
- Voice commentary up to 60 seconds
- Battery life up to 6 hours
- IP class IP54
- USB-C interface
- Weight ± 660 grams
- Dimensions 244 × 100 × 104 mm

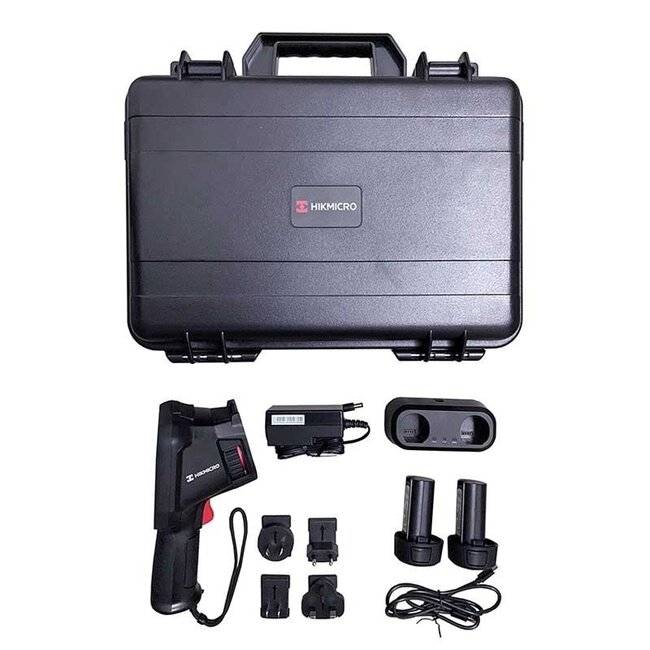

- Sturdy case
- HIKMICRO M11W thermal imaging camera
- Quick start guide
- Adapters
- USB cable
- Power adapter
- 2 Batteries
- Charging station
- Wristband
