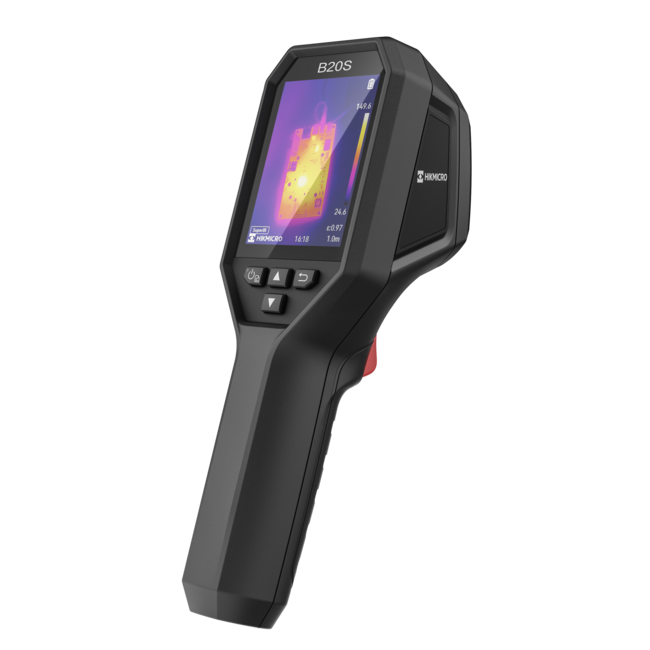

HIKMICRO B20S | HM-TP52+-3AQF/W-B20S | handheld thermal imaging camera

The HIKMICRO B20S is a compact and user-friendly handheld thermal camera designed for fast and reliable thermal inspections. With its built-in screen, fast operation, and multiple display modes, the B20S is ideal for installers, maintenance technicians, and DIY enthusiasts who want to work easily without relying on a smartphone.

Standalone thermal imaging camera with built-in screen

The HIKMICRO B20S operates completely independently and features a bright, integrated color display. This allows you to instantly view, analyze, and record thermal images during on-site inspections, in technical rooms, or during maintenance work.

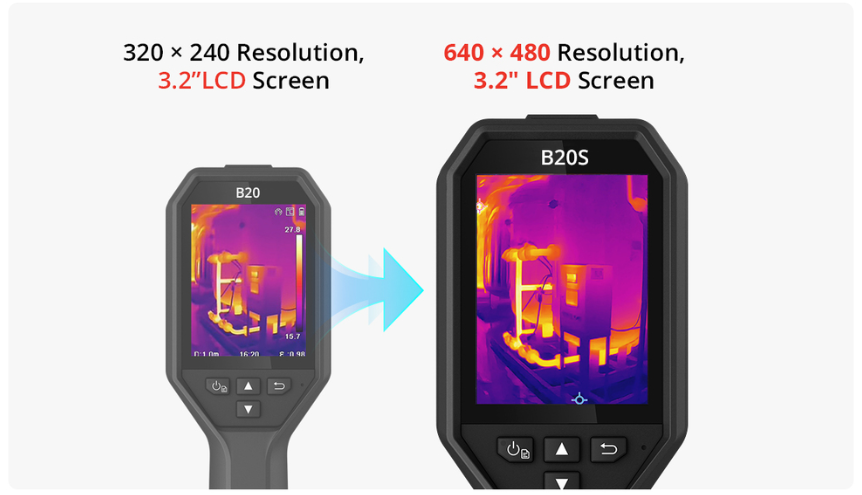

Experience the new and improved display

The B20S features a high-resolution 640x480 display. With SuperIR, you can enjoy real-time high-definition previews, revealing more detail and enhancing your overall experience.

Text continues below the photo

Reliable thermal image

The B20S is equipped with a sensitive VOx detector (NETD < 40 mK) and a thermal resolution of 256 × 192 pixels (49,152 pixels). Thanks to HIKMICRO SuperIR image processing, thermal images are displayed sharply with clear temperature differences and minimal noise.

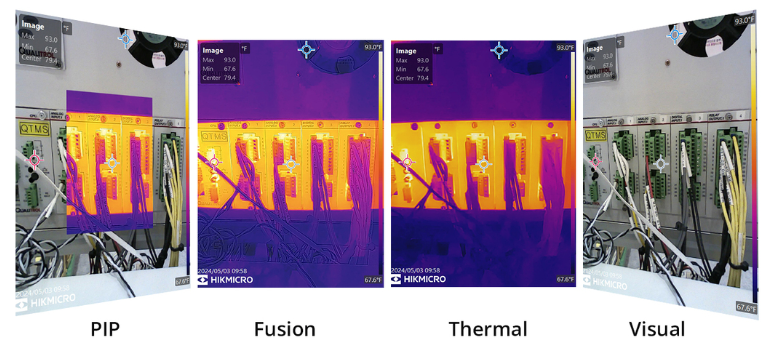

Four different display modes

The B20S has four display modes, allowing you to always choose the right image display for your application:

• Thermal mode – shows only the thermal image for maximum focus on temperature differences

• Visual mode – shows the visual image for easy recognition of objects and situations

• Fusion mode – combines the thermal and visual image for better context and interpretation

• PIP (Picture-in-Picture) – displays a thermal image window over the visual image for extra detail at specific measurement points

These modes make the B20S very versatile and suitable for a wide variety of inspections.

Text continues below the photo

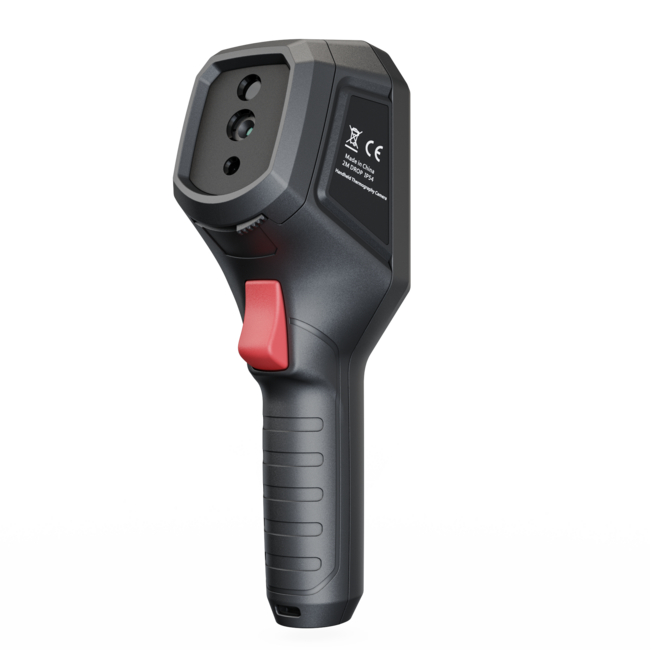

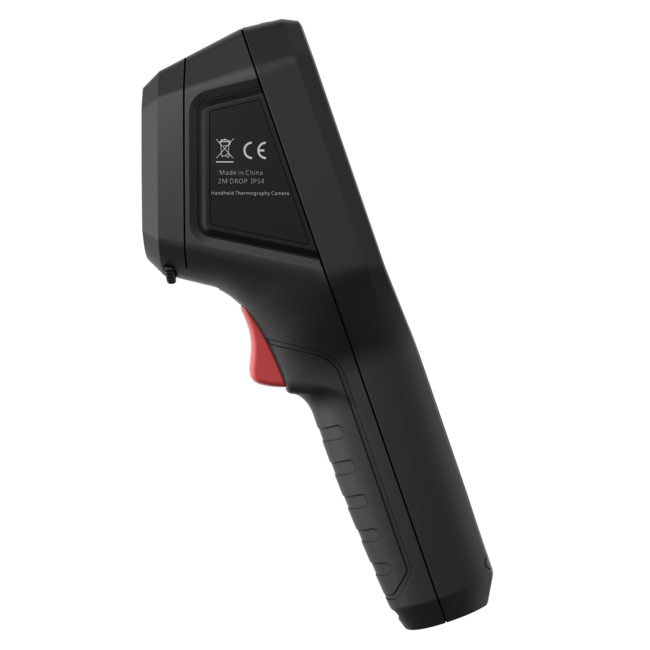

Ergonomic and robust design

The compact and ergonomic housing fits comfortably in the hand and is designed for everyday use. The B20S is suitable for inspections in both indoor and outdoor environments.

Transfer images to phone and PC

The HIKMICRO B21LS makes it easy to transfer captured thermal and visual images to other devices. The USB port allows you to quickly copy images to a PC or laptop for further analysis, archiving, or reporting. Combined with the HIKMICRO Analyzer software, you can clearly process and share inspection results. The HIKMICRO Viewer app also allows you to transfer images to your phone.

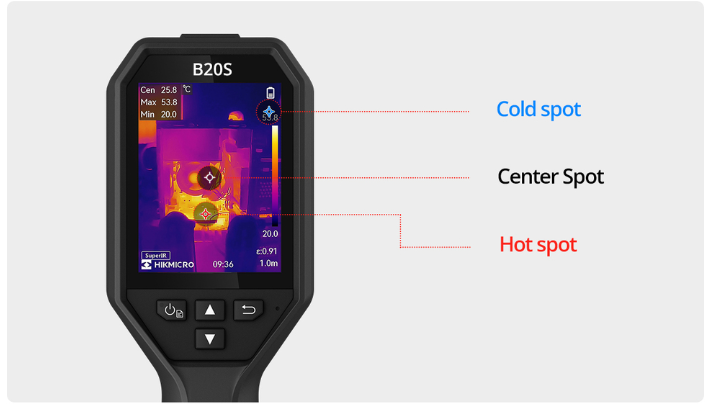

Hot spot, cold spot and center spot measurements

The HIKMICRO B20S supports automatic hot spot, cold spot, and center spot measurements. This allows you to see at a glance:

• the hottest spot

• the coldest point (cold spot)

• the temperature in the center of the image (center spot)

This makes it easy to quickly detect deviations, overheating or cold bridges without manual settings.

Text continues below the photo

Application scenarios

Thanks to the combination of thermal imaging, laser pointer and 4 different display modes, the HIKMICRO B20S is ideal for: more intensive DIY enthusiasts and semi-professionals who want to work quickly and mobile with a compact thermal imaging camera.

Key Features

• 4 display modes: Thermal, Visual, Fusion and PIP

• Hot spot, cold spot and center spot measurements

• SuperIR image enhancement for sharper thermal images

• Standalone thermal imaging camera with built-in screen

• Compact and user-friendly design

Specifications

• Thermal resolution: 256 × 192 (49,152 pixels)

• NETD: < 40 mK (@ 25 °C, F# = 1.0)

• Frame rate: 25 Hz

• Focus: Fixed

• Temperature range: –20 °C to 550 °C

• Accuracy: ±2 °C or ±2%

• Display: Built-in color display

• Image storage: Internal storage

• Data transfer: USB to PC

• Protection class: IP40

• Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Fusion

Included in delivery:

- Hikmicro B20S Thermal Imaging Camera
- Manual
- USB Cable
- Wristband
