€2.299,00 Excl. tax
€2.781,79 Incl. tax
HM-TP23-10VF/W-M30

Handheld thermal imaging camera from HIKVISION / HIKMICRO with a thermal resolution of 384x288 pixels.

In stock
In stock at supplier

Product description

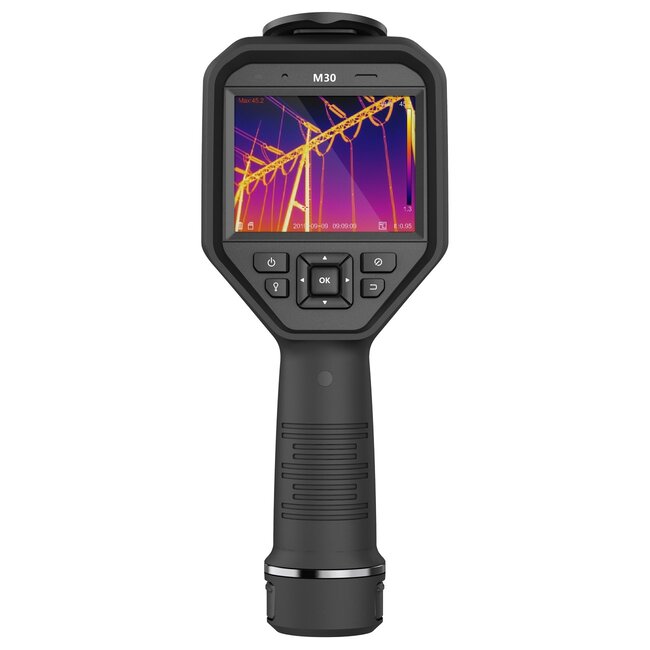

HIKMICRO M30 | HM-TP23-10VF/W-M30| Thermal Camera

Hikmicro M30 is a camera with both optical images and thermal images. The built-in high-sensitivity IR detector and high-performance sensor detects the temperature change and measure the real-time temperature. The temperature measurement range is -20 °C to 550 °C (-4 °F to 1022 °F) with accuracy ±2 °C or 2%. It helps the users to find the risky part and lower their property loss. You can connect the device to Hik-Thermal client software to view live view, capture, and recording, etc. on your phone.


Key Features:
- Thermal resolution: 384 x 288 (110.592 pixels)
- NETD : < 35mK (@ 25 °C,F#=1.0)
- Temperature measurement range : -20 °C - 550 °C
- Accuracy: Max (±2 °C or ±2%)
- Measurement Presets: Center spot, Hot spot, Cold spot, User Preset Point/Line/Area
- Manual focus
- 25 Hz image frequency
- 3.5’’ LCD touch screen display

Specifications:
- FOV (Field of View): 37.5° × 28.5°
- Digital Zoom: 1x / 2x / 4x / 8x
- Image modes: Thermal/Optical/Fusion/Picture-in-Picture
- Storage media: Removable Micro SD Card (64 GB)
- Laserpointer: Yes
- Wi-Fi: 802.11 a/ac/b/g/n (2.4 and 5 GHz)
- Bluetooth: Bluetooth 4.2
- Text comment: Max 200 Characters
- Voice comment: Max 60 Seconds
- Battery Operating Time: 5 Hours Continuous Running
- Protection Level: IP54
- Interface: USB TYPE-C
- Weight: ± 660 gram
- Dimensions: 244 mm × 100 mm × 104 mm

Packinglist:
- M30 Thermalcamera
- Quick start guide
- Adapters
- USB cable
- Power Adapter
- Battery
- Charging base
- Box
- Wrist strap


Real-time screen sharing with phone:

Specifications

100-0624
384 x 288
< 35mK
-20 °C to 550 °C
FOV 37.5° × 28.5°
8 - 14 μm
25Hz
Max (±2 °C, ±2%)
Manual
