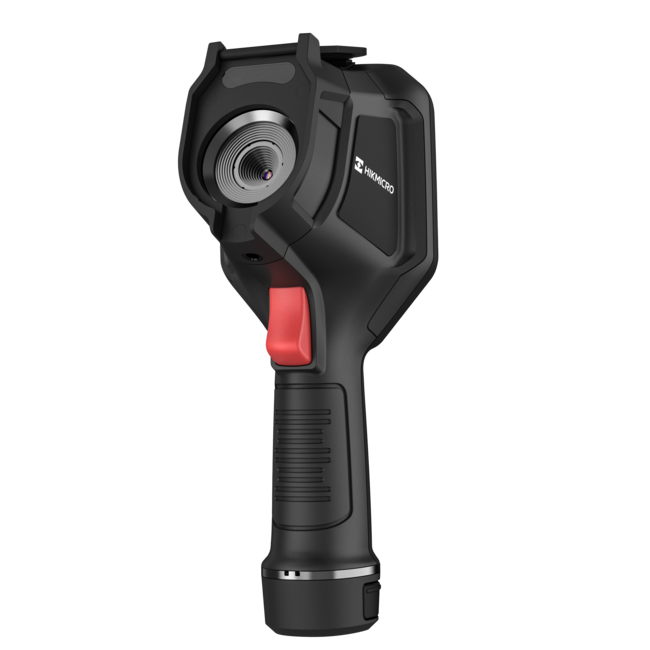

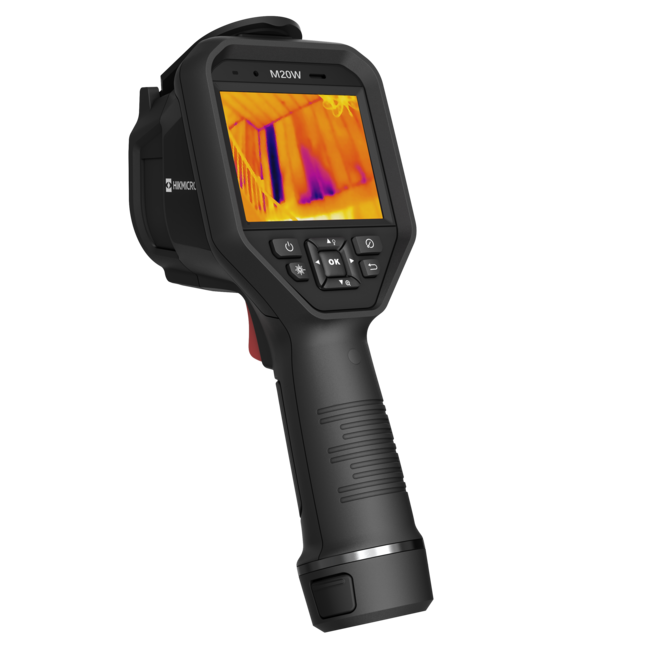

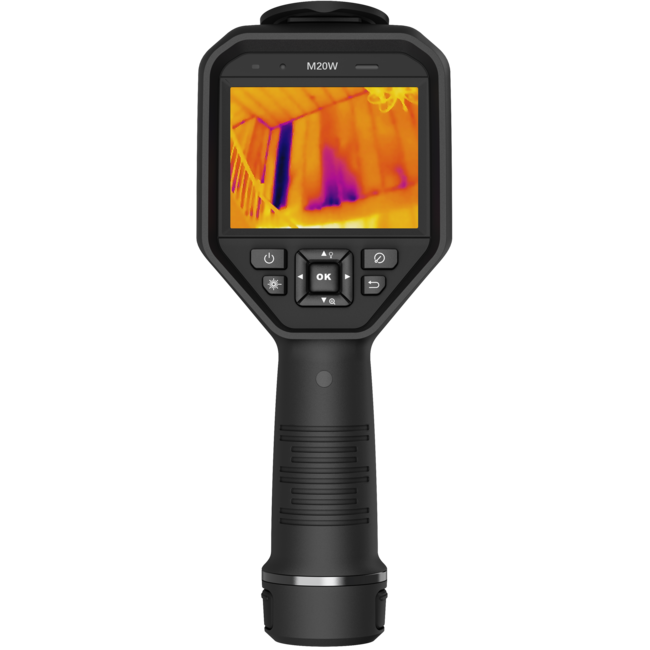

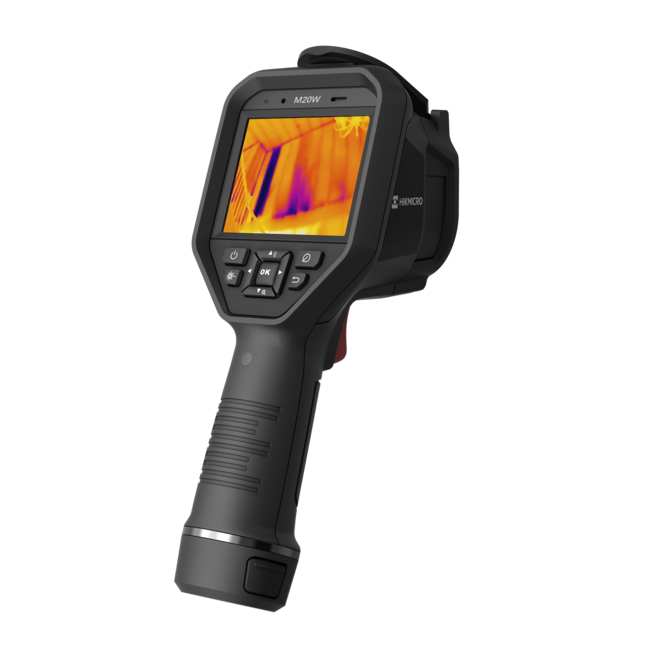

HIKMICRO M20W Thermal Imaging Camera | HM-TP22-3AQF/W-M20W

The HIKMICRO M20W is an advanced and user-friendly thermal imaging camera specifically developed for semi-professionals who want to detect temperature differences quickly and accurately. Thanks to its high thermal resolution, wide viewing angle, and robust construction, this camera is ideal for all-round building inspections.

Thermal resolution

The HIKMICRO M20W features a 256 × 192 VOx thermal detector and delivers high-sensitivity thermal images. Temperature differences become clearly visible, allowing problems to be detected early. The M20W is suitable for both preventive maintenance and the diagnosis of existing faults.

Wide viewing angle for efficient working

With the wide-angle lens (W), you can inspect larger surfaces at once. This saves time and makes the HIKMICRO M20W particularly suitable for inspecting walls, floors, and technical installations.

Robust and easy to use

The ergonomic housing ensures that the thermal imaging camera fits comfortably in the hand. The M20W is suitable for use in demanding environments. Thanks to the clear display and intuitive operation, anyone can get started with it quickly.

Text continues below the photo

Smart features for fast results

The HIKMICRO M20W is equipped with multiple color palettes, adjustable measurement points, and real-time temperature display. Images can be easily saved for reporting and further analysis. This makes the camera not only practical in the field but also ideal for documentation and customer reports.

Why choose the HIKMICRO M20W?

• High-resolution thermal imaging camera

• Wide viewing angle for quick inspections

• Robust and portable

• Suitable for construction, industry, and maintenance

Applications of the HIKMICRO M20W

• Building inspections : Identify heat loss, air leaks, moisture problems, and other thermal anomalies in buildings.
• Industrial Maintenance : Use the M20W to detect mechanical failures and deviations in machines and production lines early.
• HVAC Inspections : Check HVAC systems for temperature differences and irregularities in the airflow.
• Safety inspections : Inspect buildings and machines for hidden hazards such as overheating or poor insulation.

Text continues below the photo

Key features:

- Thermal resolution 256 x 192 (49,152 pixels)
- Thermal sensitivity of <0.04°C (NETD <40mK)
- Focus: fixed
- Field of view FOV 50° × 37.2°
- Temperature measurement range -20°C - 550°C
- Absolute accuracy ±2°C or ±2%
- 25 Hz refresh rate
- 3.5' LCD touchscreen
- User-configured measurement presets
- Centerspot, hotspot, coldspot, line, area

Specifications:

- Digital Zoom 1x / 2x / 4x / 8x
- Picture mode Thermal, Visual, Fusion, Picture-in-Picture
- Color palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
- Storage media Removable 16GB Micro SD Card
- Laser pointer Yes
- Wi-Fi 2.4 and 5 GHz
- Bluetooth 4.2
- Text comment up to 200 characters
- Voice commentary up to 60 seconds
- Battery life 6 Hours
- IP Class IP54
- USB TYPE-C Interface
- Weight ± 660 grams
- Dimensions 244mm × 100mm × 104mm

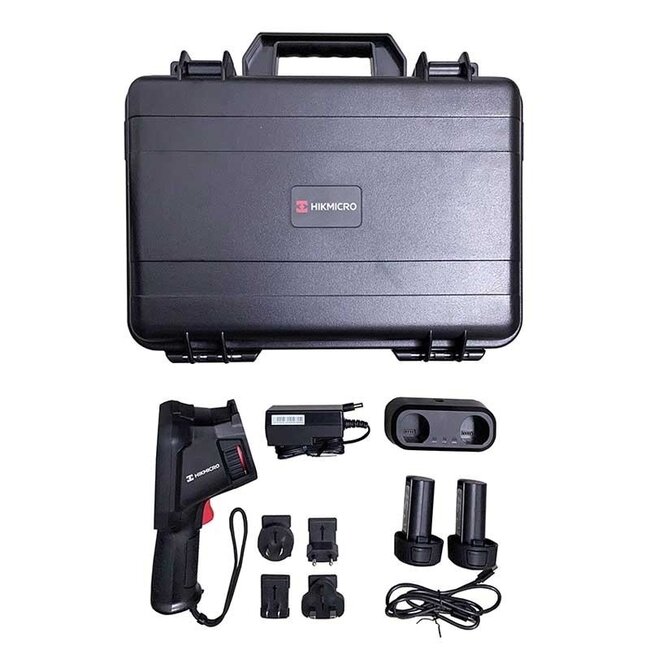

Included in delivery:

- Suitcase
- Hikmicro M20W Thermal Imaging Camera
- Quick start guide
- Adapters
- USB cable
- Power Adapter
- 2x Li-ion interchangeable battery
- Charging station for 2 batteries
- Wristband
