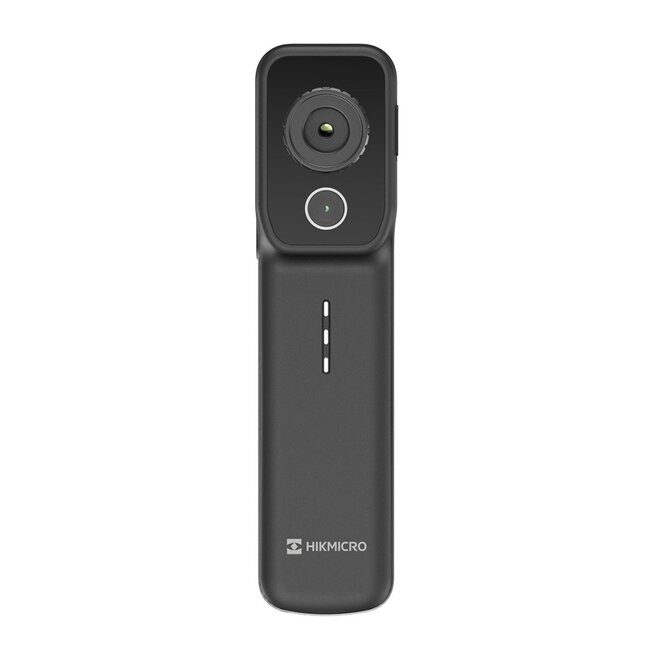

HIKMICRO MINI-X | HM-TJ52-3AQF/W-MiniX | Smartphone Thermal Imaging Camera

The HIKMICRO MINI-X is a compact yet extremely powerful smartphone thermal camera specifically designed for high-speed inspections. This innovative thermal camera connects wirelessly via Wi-Fi to your smartphone or tablet, offering an exceptional combination of mobility and image quality. Its pocket-sized design allows you to always have a thermal imaging tool at hand.

Manually focusable lens for maximum sharpness

A key distinguishing feature of the HIKMICRO MiniX is its manually focusable thermal lens. Unlike fixed-focus lenses, this adjustable focus allows for perfect image sharpness at both short and long distances. This is essential for sharp thermal images, especially during technical inspections where detail is crucial, such as on electrical components, printed circuit boards, or mechanical parts.

A properly adjusted focus prevents measurement errors and significantly increases the reliability of thermographic analysis. This makes the MiniX ideal for applications where precision counts.

Advanced imaging technology and dual camera

The HIKMICRO MINI-X features a high-performance VOx detector combined with a 0.3 MP optical camera. Its dual-lens array provides additional visual context to thermal images. SuperIR™ technology upscales thermal images using software, making details more visible.

Thanks to image fusion and overlay capabilities, thermal and visual images can be combined. This makes it easier to quickly locate hidden thermal problems, such as insulation leaks, overheating, or defective components.

Flexible mounting and wireless operation

The included brackets allow you to mount the MiniX flexibly: clipped to your smartphone for one-handed operation, magnetically attached to metal surfaces, or mounted on a tripod for long-term monitoring. Thanks to the wireless Wi-Fi connection, you can work completely cable-free.

Text continues below the photo

Compact, professional and always ready for use

The HIKMICRO MINI-X combines a focusable lens and advanced image processing in an extremely compact design. This makes this thermal camera the ideal choice for installers, inspectors, and maintenance specialists who want to get started quickly and flexibly.

Highlights

- Wireless connection
- Optical camera
- Focusable lens

Key Features:

- Thermal resolution: 256 x 192 (49,152 pixels)
- NETD: <40mK
- Temperature measurement range: -20°C to 550°C
- Accuracy: ±2 °C (15 °C to 35 °C)
- USB Type-C Interface (Android)
- Weight: 158 grams

Specifications:

- Field of view FOV: 37.2° × 50.0° (H × V)
- Minimum focus distance: 50 cm
- Focus: Manual
- Frame rate: 25Hz
- Power: 4 hours battery life
- Phone model: iOS (Version 14 or later), Android (Version 9 or later)
- IP Class: IP54
- Dimensions: 155.45 × 38.89 × 32.15 mm
- Color palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red

Included in delivery:

- MINI-X Smartphone Thermal Imaging Camera
- USB cable
- Phone holder
- Quick start guide
- Storage bag

App:

You need to download the "HIKMICRO viewer" app from the Google Play Store or Apple Store.
Open the app, connect the camera and follow the steps.

- Apple store: Download here for Apple
- Playstore: Download here for playstore
