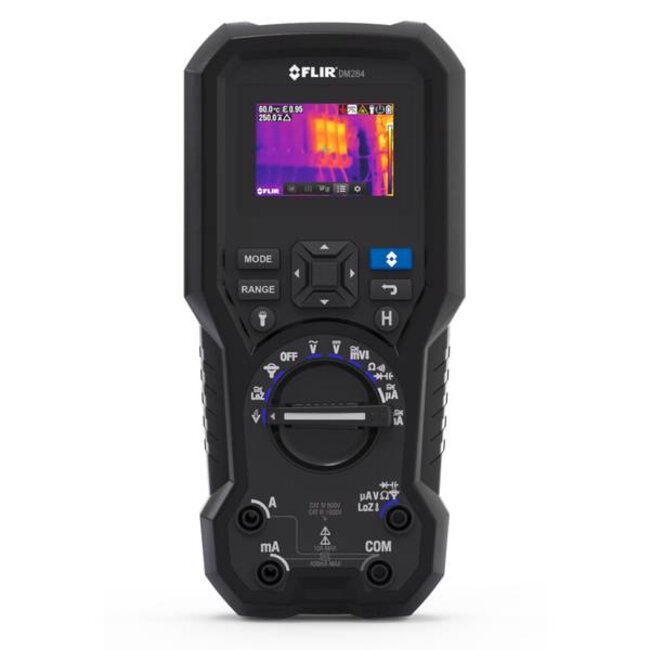

The FLIR DM284 Imaging Multimeter with IGM is a professional, all-in-one True RMS digital multimeter and thermal imager that can show you exactly where an electrical problem is to speed up troubleshooting.
Featuring Infrared Guided Measurement (IGM) technology powered by a built-in 160x120 thermal imager, the DM284 visually guides you to the precise location of an electrical problem, helping you pinpoint hot spots faster and more efficiently.
Troubleshoot fast with IGM
Instantly spot electrical issues and get more done with the 160x120 resolution FLIR thermal imager. Plus,
the all-in-one tool is convenient to carry on you so you always have acces to thermal imaging.
Solve challenging problems easily
Featuring 18 measurement functions including True RMS, LoZ, and NCV, you can verify potential issues with trusted readings every time - even for the most complex measurements. The DM284 also includes a thermocouple input and allows you to view thermal and electrical measurements simultaneously.
The simple user interface is intuitive to use and the thermal camera features 3 color palettes to choose from. Built-in worklights and a laser pointer help you access difficult locations with lighting issues and pinpoint the location of the problem in the thermal image.
FLIR DM284 features:
A built-in 160x120 resolution thermal camera sensor visually guides you to an electrical problem.
Thermocouple input + test probe
The DM284 includes high quality test probes and a Type K thermocouple input
18 measurement functions
Performs 18 measurement functions including True RMS, VFD mode, LoZ, NCV and more
Smart design and functionality
Intuitive user interface, large display screen, onboard laser pointer, LED worklights
Drop-tested and IP rated for splash and water resistance
Includes 10-year warranty
FLIR DM284 specifications:
- View thermal and electrical / thermocouple measurements simultaneously: Yes
- Image resolution: 19.200 pixels (160x120)
- Sensitivity: < 150 mk
- Emissivity: 4 Presets with custom adjustment
- Accuracy: 3°C or 3.5%
- Range: 14°F to 302°F (-10°C to 150°C)
- FOV (WxH): 46° x 35°
- Laser pointer: Yes
- Focus: Fixed
- Palette: Iron, Rainbow, Greyscale
- Level & Span: Auto
- Dropt test: 3m
- IP Rating: IP54
- Worklights: Yes
- Display size: 2.8"
- Safety: CAT III 1000 V, CAT IV 600 V
- Size (HxWxL): 200 x 95 x 49 mm
- Weight: 537 g
- FLIR DM284 Type K thermocouple
- Premium silicone test leads
- CAT IV insulated alligator probes
- Test Lead storage/tripod accessory
- Four AAA batteries and documentation
