Zenmuse XT 640 9Hz

€9.836,00 Excl. tax
€11.901,56 Incl. tax

Thermal imaging from the air has never been as easy as it is with the Zenmuse XT 640 9Hz

Out of stock
Soon available

Product description

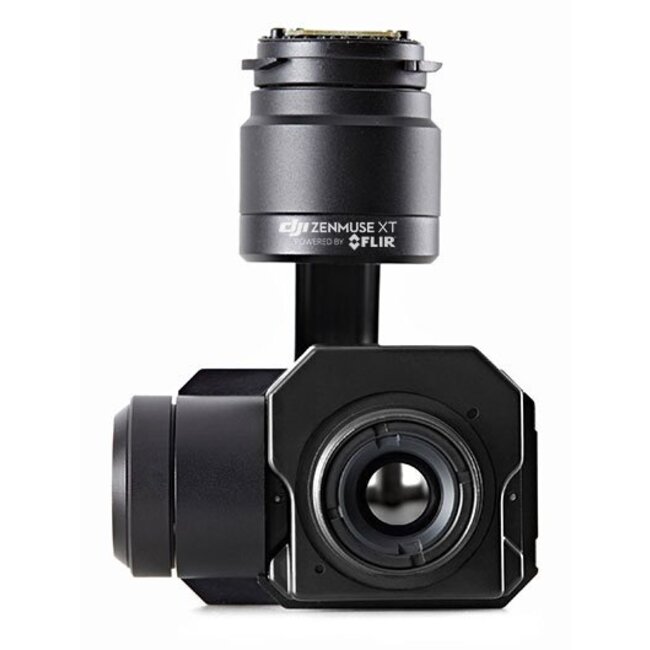

Zenmuse XT 640 9Hz

Thermal imaging from the air has never been as easy as it is with the DJI Zenmuse XT. By combining DJI’s unrivaled expertise in gimbal technology and image transmission with the industry leading thermal imaging technology of FLIR, the Zenmuse XT is the ultimate solution for rapid and reliable aerial thermal imaging. Capture faster, with pinpoint precision, over large areas, then save them for analysis and reporting.

Integrated Thermal Camera

The camera on the DJI Zenmuse XT is developed by FLIR. It provides high-sensitivity (50mK) infrared scanning at 640/30 fps or 336/30 fps depending on the camera model. This sensitivity provides accurate temperature measurements ideal for analytics and telemetry. Both cameras are available with four lens options to meet different business needs. Stabilized and controlled by a custom DJI gimbal, it provides smooth, clear imagery and 360 degrees of seamless rotational movement.

Thermal Imager

Uncooled VOx Microbolometer

FPA/Digital Video Display Formats

640 × 512

336 × 256

Pixel Pitch

17 μm

Full Frame Rates

30 Hz (NTSC) 25 Hz (PAL)

Exportable Frame Rates

<9Hz *

Sensitivity (NETD)

<50 mK at f/1.0

Photo Formats

JPEG (8 bit) / TIFF (14 bit)

Video Format


Digital Zoom

2x, 4x, 8x

2x, 4x

Lens Options

  7.5mm 90° x 69°
  9mm 69° x 56°
  13mm 45° x 37°
  19mm 32° x 26°

  6.8mm 49.1° x 37.4°
  9mm 35° x 27°
  13mm 25° x 19°
  19mm 17° x 13°

*Please refer to Export page for details about the Zenmuse XT in your market.


DJI Zenmuse 1 / Matrice 100
640 x 512 pixels
7.5mm 90° x 69° -- 9mm 69° x 56° -- 13mm 45° x 37° -- 19mm 32° x 26°
