The FLIR Si2-PD is an easy-to-use acoustic imaging camera for locating and quantifying partial discharges. Read more.

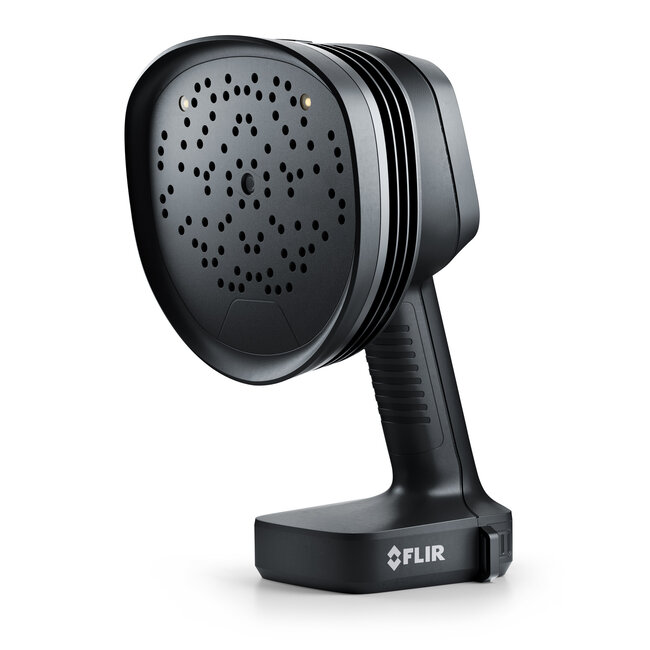

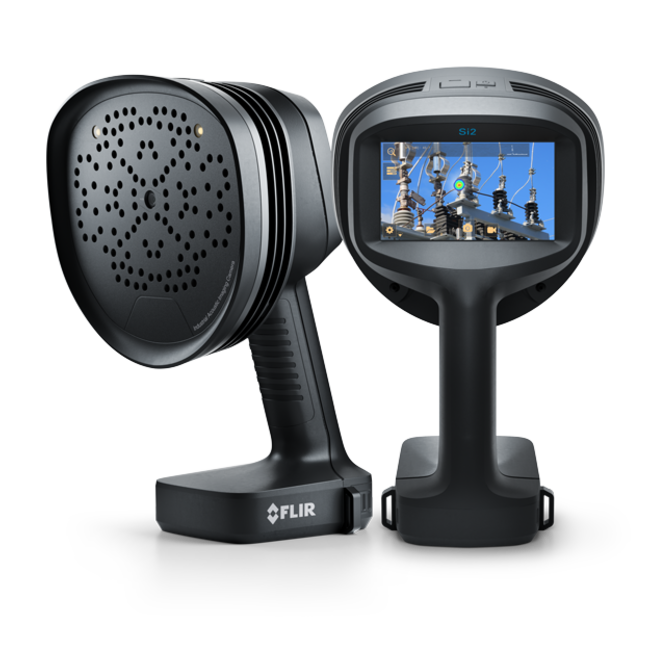

The FLIR Si2‑PD is an industrial acoustic imaging camera that can detect, locate, classify, and assess partial discharge (PD) faults up to 200 m (656 ft) away. This camera can detect PDs up to 30 times smaller than what older systems could pick up, which is crucial for preventative maintenance and preventing defects or failures.
Integrated AI Analysis : Automatically assesses severity and type of discharge, including action recommendations, both on-device and via software.
Fleet Management and Connectivity : Support for wireless cloud integration, Over‑The‑Air (OTA) updates, and fleet management for large-scale deployments.
Lighting : Dual LED lights to illuminate dark environments.
Key Features
• Detect, locate, classify and assess partial discharge (PD) faults from
a distance of up to 200 m (656 ft)
• Identify PDs that are 30 times smaller than ever before
• Assessment of the severity of PD problems based on camera and software data,
and PD type classification provides best-in-class decision support
• One-handed operation with auto-adjustment, 8x zoom, a 12 MP
digital camera and IP54 rating
• Designed for scaling within enterprises through the use of fleet management functionality,
so that managers can ensure the tools are used correctly
and maintain
Ultrasonic specifications:
Distance: from 0.3m to 200m (1.0 ft to 656 ft)
Ultrasonic measurement: 124 low-noise MEMS microphones, real-time sound visualization
Discharge classification: Discharge to air, Surface discharge, Floating discharge
Leak rate:
In typical industrial environment:
> 0.0032 l/min up to 2.5m, 0.00441/min up to 6m
Bandwidth 2 kHz to 130 kHz
Main applications:

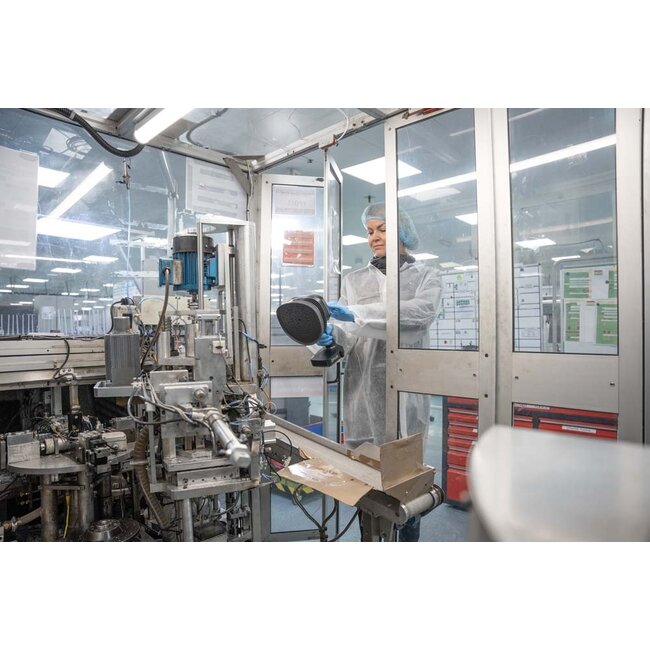

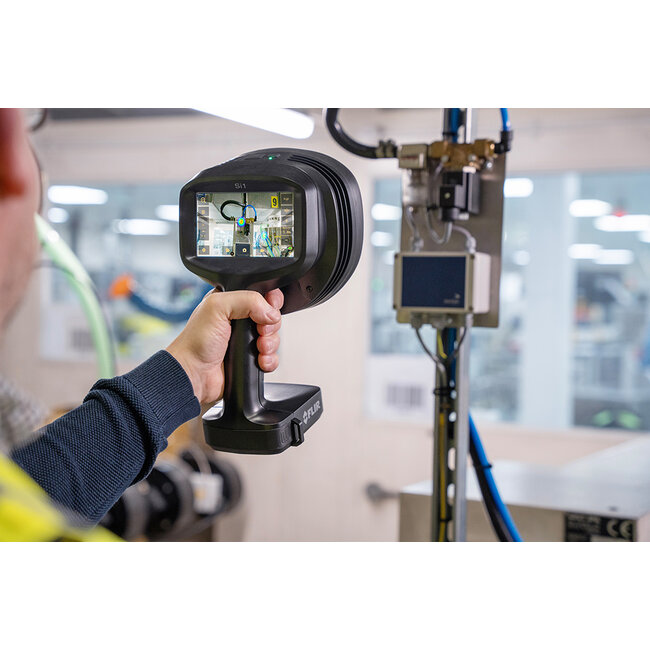

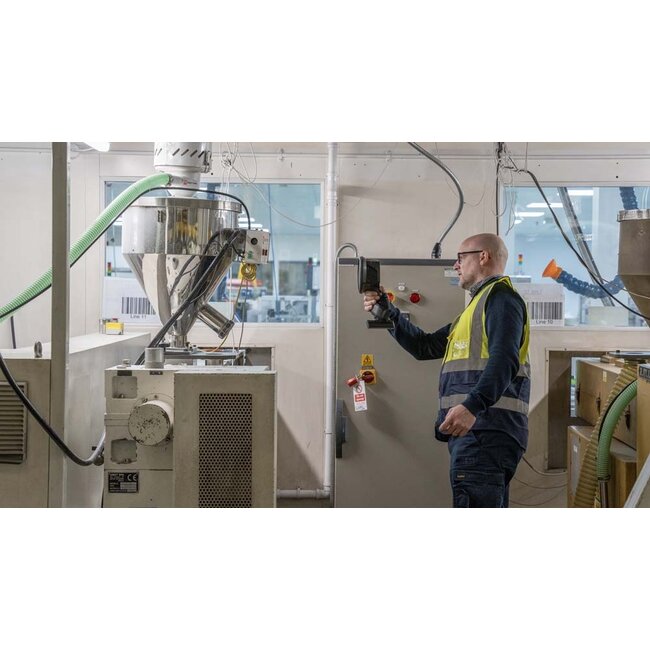

• Leak detection in the production and process industry
• Preventive maintenance and optimization of equipment
• Energy efficiency and compliance

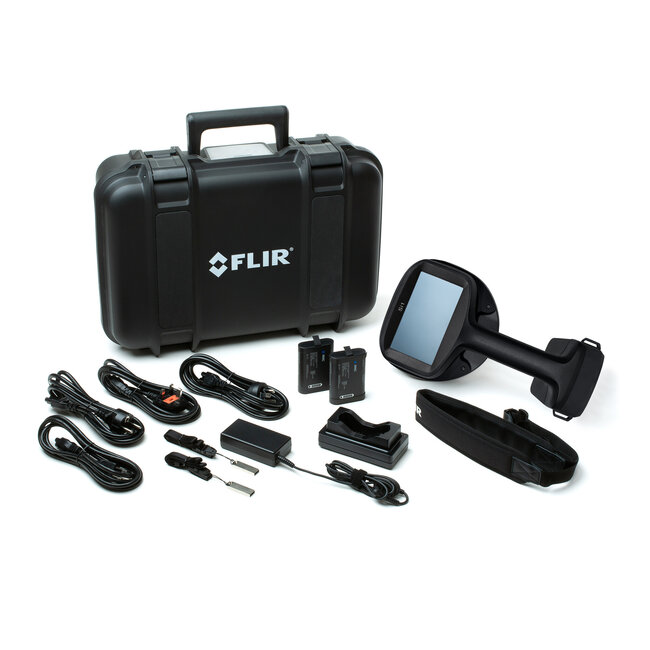

Included in delivery:
• Camera
• Battery (2 pcs)
• Battery charger
• Power cable
• Carrying strap
• Transport case
• License card: FLIR Si-series Plugin for FLIR Thermal Studio, Perpetual license
• USB memory stick
• Printed documentation
