The FLIR Si1-LD is an easy-to-use acoustic imaging camera for locating and quantifying pressure leaks in compressed air systems. Read more.

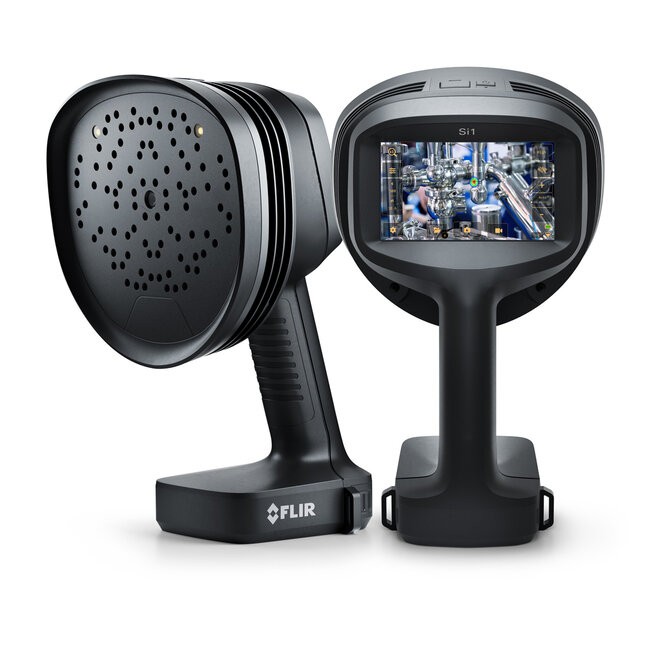

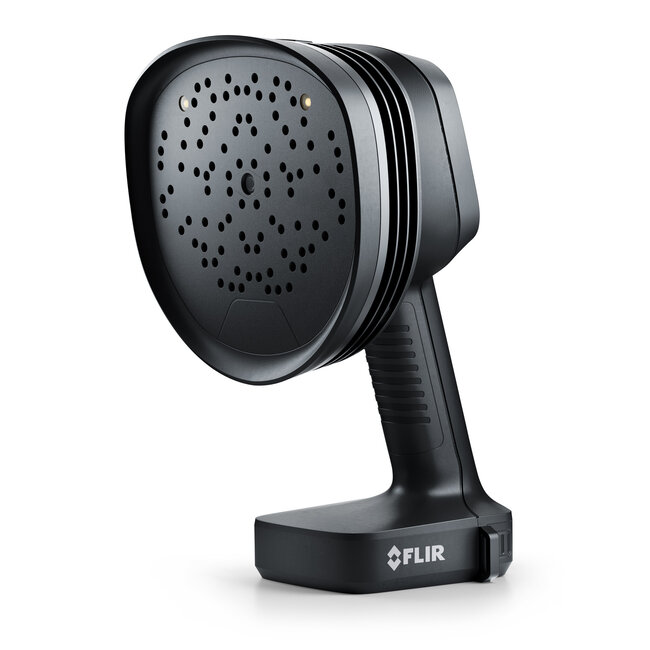

The FLIR Si1-LD is an easy-to-use acoustic imaging camera for locating and quantifying pressure leaks in compressed air systems. This lightweight camera is designed to help maintenance, production, and engineering professionals identify air leaks faster than traditional methods. Built with a carefully selected array of MEMS microphones for high sensitivity, the Si1-LD produces a precise acoustic image that visually displays ultrasonic information, even in loud, industrial environments. The acoustic image is overlaid on a digital image in real time, allowing you to accurately locate the source of the noise, with on-board analytics that quantify the losses incurred. The Si1-LD includes a plug-in that allows you to import acoustic images into the FLIR Thermal Studio suite for offline editing, analysis, and advanced reporting. Field analysis and reporting can also be performed using the FLIR Acoustic Camera Viewer cloud service. Image transfer can be managed via a memory stick or USB data cable. Through a regular maintenance routine, the FLIR Si1-LD can help facilities reduce their environmental impact and save money on energy bills.
Key Features:
• Automatically detects compressed air and vacuum leaks up to 130 meters (427 feet).
• Noise suppression technology ensures uninterrupted operation in noisy industrial environments, improving accuracy and usability.
• Bandpass filter allows manual tuning of the frequency range for precise inspections.
• Lightweight design allows for intuitive one-handed operation, ideal for quick inspections in large facilities.
• Touchscreen interface captures high-resolution images with real-time quantifiable leak rate and cost prediction for prioritizing repairs.
• Seamless reporting options, including online analysis via FLIR Acoustic Viewer and offline reporting with FLIR Thermal Studio software.
Ultrasonic specifications:
Distance: from 0.3m to 130m (1.0 ft to 427 ft)
Ultrasonic measurement: 96 low-noise MEMS microphones, real-time sound visualization
Discharge classification: Discharge to air, Surface discharge, Floating discharge
Leak rate:
In typical industrial environment:
> 0.010 l/min up to 2.5m, 0.017/min up to 6m
Bandwidth 2 kHz to 100 kHz
Main applications:

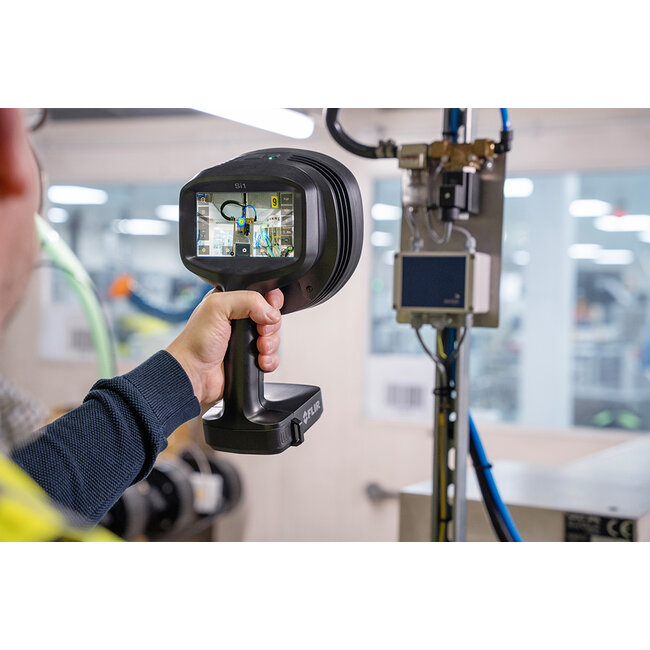

• Leak detection in the production and process industry
• Preventive maintenance and optimization of equipment
• Energy efficiency and compliance
Included in delivery:
• Camera
• Battery (2 pcs)
• Battery charger
• Power cable
• Carrying strap
• Transport case
• License card: FLIR Si-series Plugin for FLIR Thermal Studio, Perpetual license
• USB memory stick
• Printed documentation
