MIO Series intelligent I / O solutions are designed to convert FLIR thermal imaging temperature sensors into complete remote monitoring systems

Out of stock
In stock at supplier

Product description

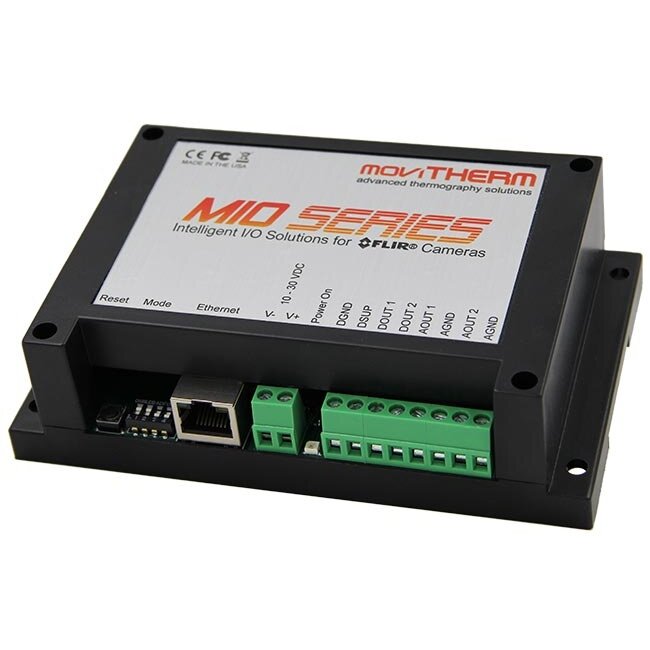

FLIR MIO-AX8-1

The MIO Series Intelligent I/O solutions are designed to turn FLIR thermal imaging temperature sensors into complete remote monitoring systems. Easy to set up and easy to configure, the MIO Series is your remote monitoring solution for process control, condition monitoring, and fire prevention.

The MIO Series is an intelligent module that can be easily configured via the built-in web server. Once connected with one FLIR thermal imaging temperature sensor, the MIO module can target designated regions or areas of interest (ROI) and start monitoring. The module can be programmed
through the web server to alarm when a temperature threshold is breached, updating in real time. The MIO can also output an analog 4 to 20 mA current loop signal per each region of interest, providing the user with process control options.


Key features:
- Compatible with FLIR® AX8 Cameras
- Monitor 1 camera
- Configure Alarms via built-in Web Server
- Digital Outputs (24 VDC)
- 4-20 mA Outputs
- Ethernet Connectivity

Typical applications:
- Critical Vessel Monitoring
- Condition Monitoring
- Process Monitoring
- Early Fire Detection

Technical Specifications:

Maximum Cameras Supported 1
Ethernet Connection 100Base-T
Communication Protocol Modbus TCP/IP
4-20 mA Transmitter Channels 2 CH, Loop Powered, Isolated
Digital Output Channels 2
Digital Output Current 0.5A per Channel, 1.5A All Channels
Digital Output Voltage 10-30 VDC
Power Supply Voltage 24 VDC
Maximum Power Consumption 3 W
List of Contents MIO-AX8-1 Unit
Din Rail Mountable
Manual on USB drive



MIO-AX8-1 voorbeeld
Basic thermal monitoring with alarms using the MIO-AX8-1
