HIKMICRO MINI2PLUS V2 | HM-TJ32-7RF-Mini2Plus V2 | Smartphone Thermal Imaging Camera for Android and iOS.

The HIKMICRO Mini2Plus V2 is an advanced smartphone thermal camera that combines thermal performance with an extremely compact design. What sets this Plus version apart is its adjustable lens, allowing you to manually focus the thermal image for maximum detail at various distances. This makes the Mini2Plus V2 particularly suitable for inspecting both close-up objects and larger surfaces. Thanks to its compatibility with Android and iOS devices, it's a powerful solution for demanding DIY enthusiasts and semi-professionals.

USB-C and Lightning compatibility

The HIKMICRO Mini2Plus V2 is ready to use with modern Android smartphones and the latest iPhones thanks to USB-C support. A Lightning to USB-C adapter is included for iPhone 14 and older models. This makes the thermal camera widely applicable without the need for additional accessories.

Text continues below the photo

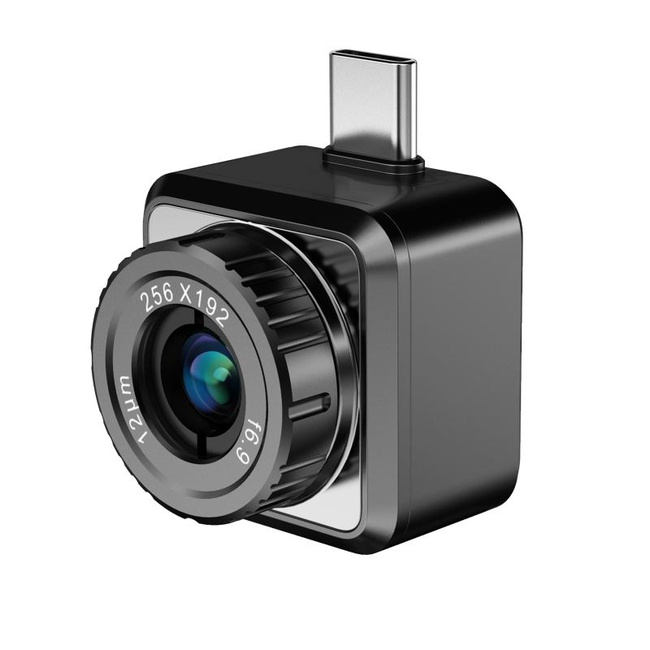

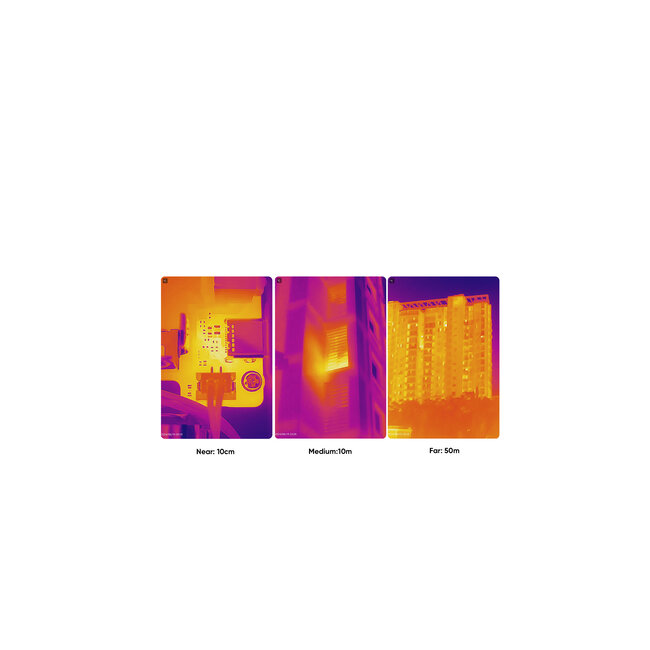

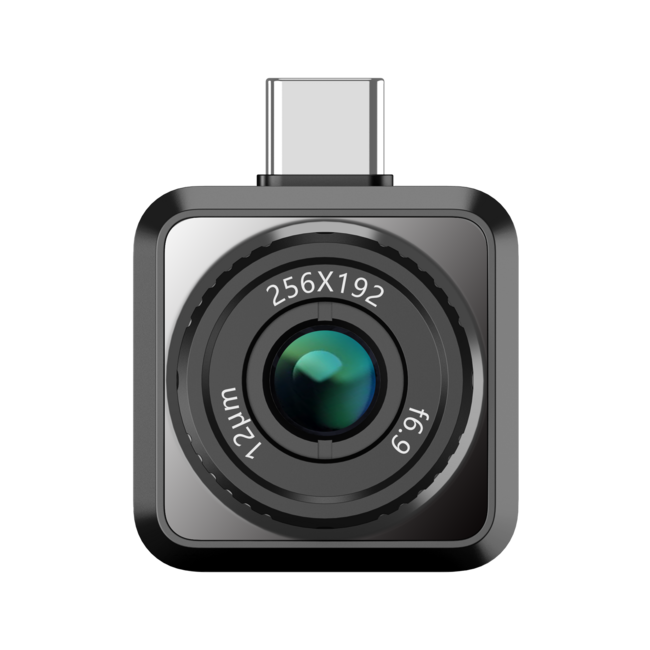

Thermal imaging with adjustable lens

The Mini2Plus V2 features a highly sensitive VOx detector (NETD < 40 mK) with a thermal resolution of 256 × 192 pixels (49,152 pixels). Combined with the manually adjustable focus lens and advanced HIKMICRO SuperIR image processing, this delivers exceptionally sharp thermal images with distinct edges and minimal noise, both during close-up inspections and measurements at a distance.

Without battery, always immediately available

The Mini2Plus V2 has no internal battery and is powered directly by your smartphone. This means no charging, no waiting, and always ready to use. Its low energy consumption ensures minimal drain on your smartphone's battery.

Automatic and manual image rotation

Whether you're working horizontally or vertically, the Mini2Plus V2 automatically adjusts. You can also manually adjust the image rotation for optimal ease of use and perfect viewing in any situation.

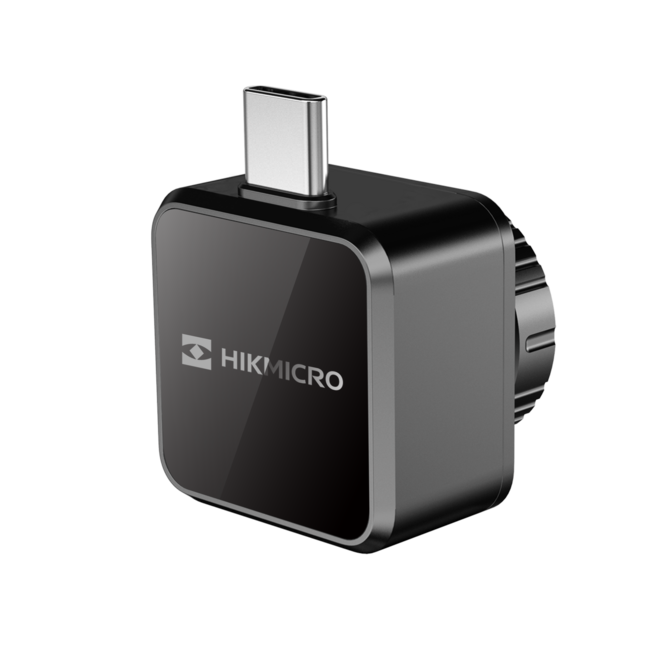

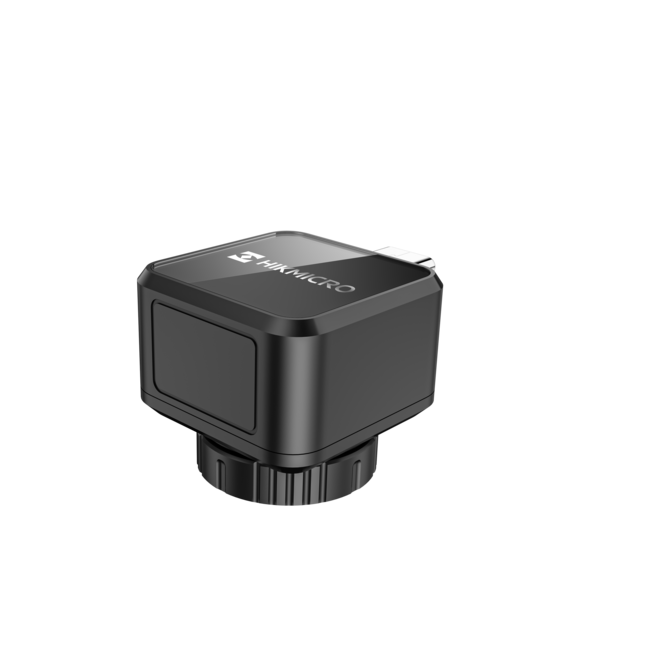

Compact and robust design

Thanks to its small and lightweight design, the Mini2Plus V2 fits easily in a trouser pocket, tool bag, or jacket pocket. The rugged housing is designed for everyday use and makes the camera suitable for inspections at home, in the workshop, or on location.

Text continues below the photo

Application scenarios

Thanks to its adjustable lens, the HIKMICRO Mini2Plus V2 is ideal for applications such as electrical installations, mechanical maintenance and technical DIY projects where focusing at different distances is essential.

Key Features

• Thermal resolution: 256 × 192 (49,152 pixels)

• NETD: < 40 mK (@ 25 °C, F# = 1.0)

• Accuracy: ±2 °C or ±2%

• Manually adjustable focus lens for maximum sharpness

• SuperIR image enhancement for live and recorded images

• 3-in-1 connection: USB-C (iOS & Android) + Lightning adapter

• Compact, lightweight and ready to use

Specifications

• Field of View (FOV): 50° × 37.2° (H × V)

• Minimum focus distance: 0.1 m

• Focus: Manual

• Frame rate: 25 Hz

• Protection class: IP40

• Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Fusion, Custom Palette

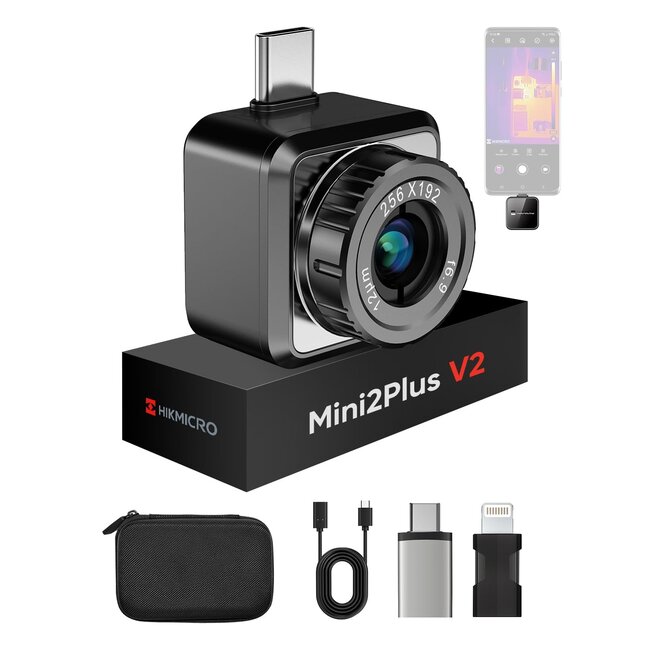

Included in the delivery

• HIKMICRO Mini2Plus V2 Smartphone Thermal Imaging Camera

• Extension cable

• Extension adapter

• Protective cover

• Quick Start Guide

• Lightning to USB-C adapter

App:
You need to download the "HIKMICRO viewer" app from the Google Play Store or Apple Store.
Open the app, connect the camera and follow the steps.

- Apple store: Download here for Apple
- Playstore: Download here for playstore
