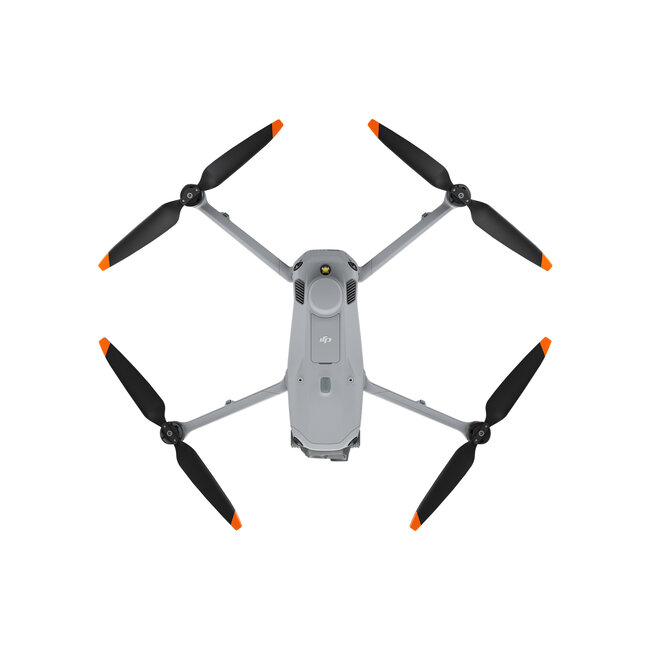

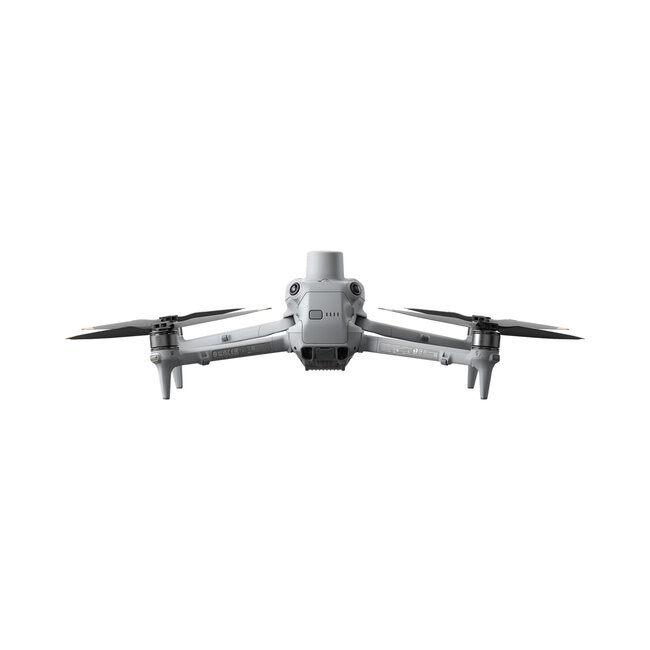

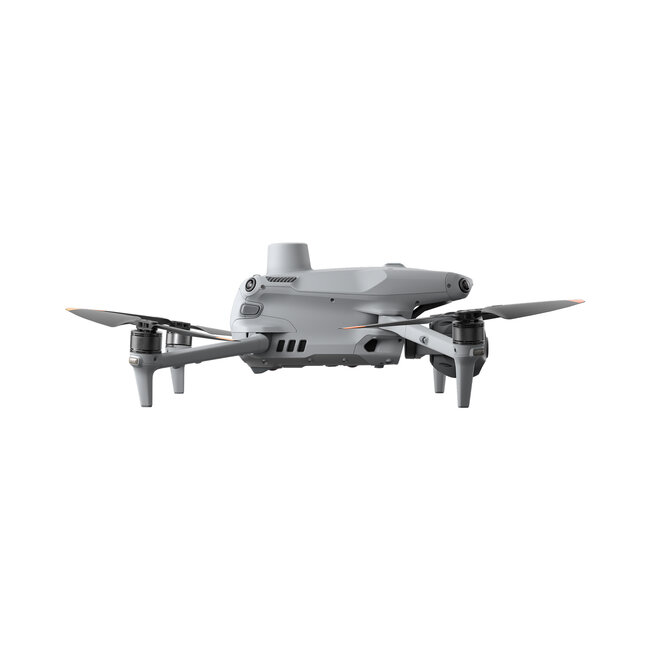

DJI Matrice 4T Advanced Drone with Thermal Imaging Camera

The DJI Matrice 4T is a professional tool for inspection, mapping and security operations. This drone combines advanced cameras, an infrared thermal sensor and a laser rangefinder to provide accurate data in various conditions.

Three cameras in one

The Matrice 4T is equipped with three powerful cameras, each with its own specific application:

Wide-angle camera: 1/1.3" CMOS sensor with 48 MP resolution and an f/1.7 aperture. Ideal for capturing wide landscapes and overview images.

Medium Telephoto Camera: 1/1.3" CMOS sensor with 48 MP and a focal length of 70 mm. Perfect for detailed inspections at medium distances.

Telephoto camera: 1/1.5" CMOS sensor with 48 MP, 168 mm focal length and 7x optical zoom. Ideal for capturing fine details from far away.

Thermal camera for crucial measurements

The Matrice 4T features an infrared camera with a resolution of 640 x 512 and an f/1.0 aperture. This thermal camera supports High-Res Mode, which makes heat differences visible in detail. Ideal for applications such as firefighting, search and rescue operations and inspections of solar installations.

Night vision and low-light capabilities

Thanks to the NIR auxiliary light and an advanced night vision system, the Matrice 4T can operate effectively even in the darkest conditions. The Full-Color Night Vision mode offers enhanced image quality, allowing obstacles and targets to remain clearly visible during night missions.

Laser Range Finder

The built-in laser rangefinder has a range of up to 1800 meters and can perform precise measurements for terrain mapping, object location or calculating fire areas, making the Matrice 4T a powerful tool for precision tasks.

Advanced flight features

• Waypoint Flight: Have the Matrice 4T fly a pre-programmed route, ideal for routine inspections and mapping.
• Return to Home : The drone will automatically return to its takeoff point if connection is lost or the battery is low.
• Cruise Control: Allows you to fly the drone at a constant speed, without having to constantly operate the sticks.
• Obstacle Avoidance: With 5-directional low-light omnidirectional sensors, the drone independently avoids obstacles, even in challenging environments.

Excellent transmission and connectivity

The Matrice 4T is equipped with the O4 Enterprise transmission system, which offers a range of up to 25 km and a stable video connection with a download bandwidth of 20 MB/s. With the optional DJI Cellular Dongle 2, the drone can support hybrid transmission via 4G networks for even more stability in urban areas or challenging environments.

Applications in industry

The DJI Matrice 4T is designed for a variety of usage situations, such as:

• Public safety: search and rescue operations, incident management.
• Infrastructure inspections: bridges, power lines and buildings.
• Geographic mapping: precise terrain analysis and land surveys.
• Environmental protection: monitoring of natural areas and wildlife management.

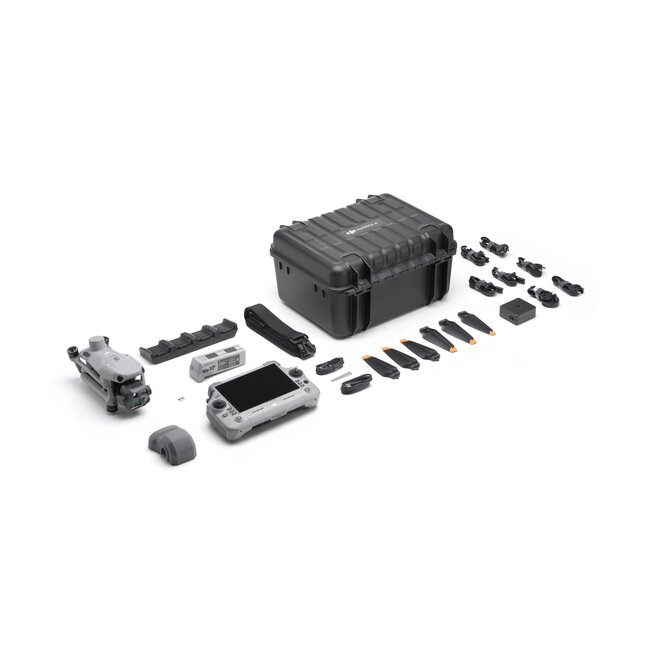

In the box

• 1 x Aircraft (microSD card installed)
• 1 x Remote Controller
• 1 x Intelligent Flight Battery
• 3 x Propeller (pair)
• 1 x Charger
• 1 x Charging Hub
• 1 x Power Cable
• 1 x USB-C cable
• 1 x USB-C to USB-C cable
• 1 x Carrying case
• 1 x Pry Bar
• 1 x Manual

Downloads:
User Manual (EN)
Quick Start Guide (ENG)
DJI Thermal Analysis Tool 3.0 - software
DJI Thermal Analysis Tool 3.0 - User Manual (ENG)

Application: the nature drone

Protecting animals with the help of thermal images. Probably not the first thing that comes to mind as a thermography application, but certainly in combination with a drone, this offers many solutions to prevent animal suffering. Read more >
