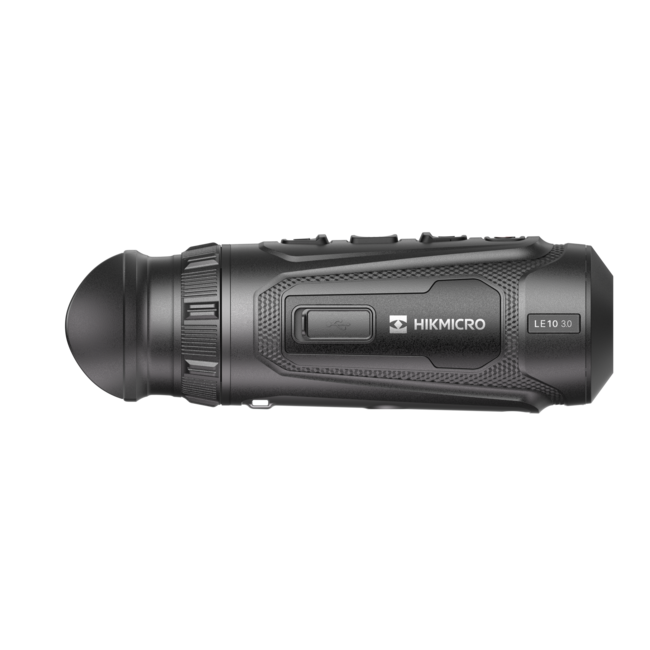

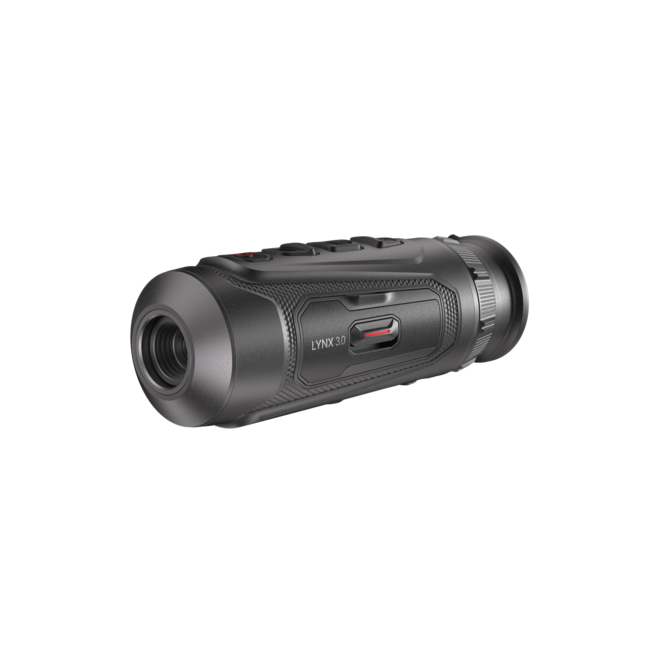

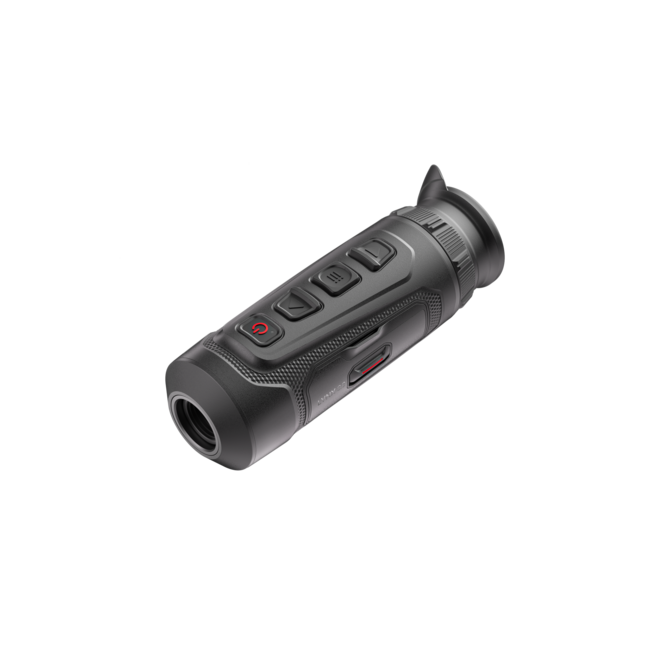

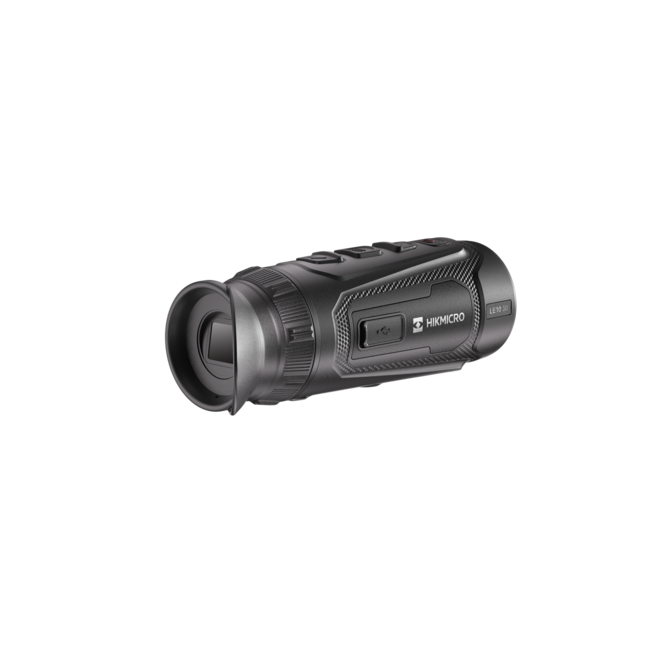

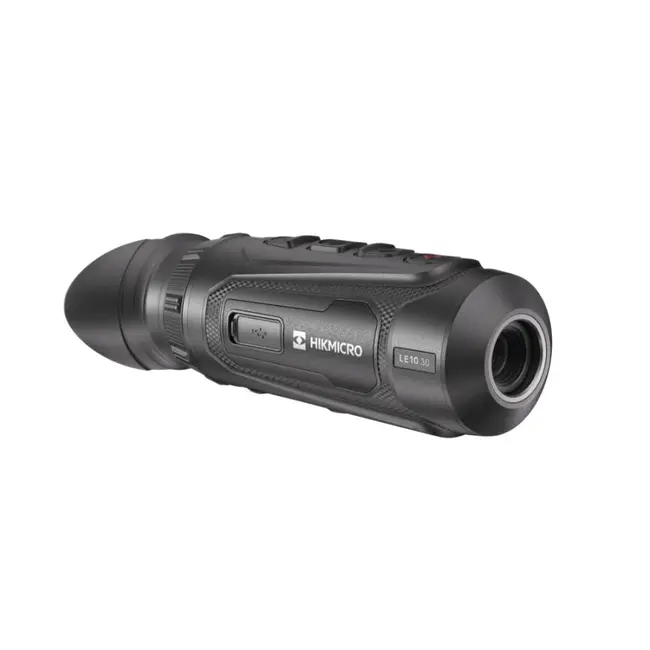

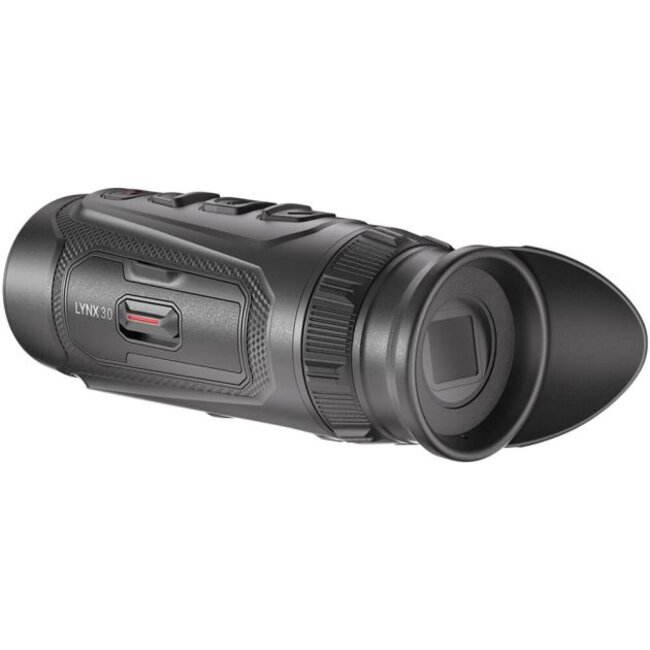

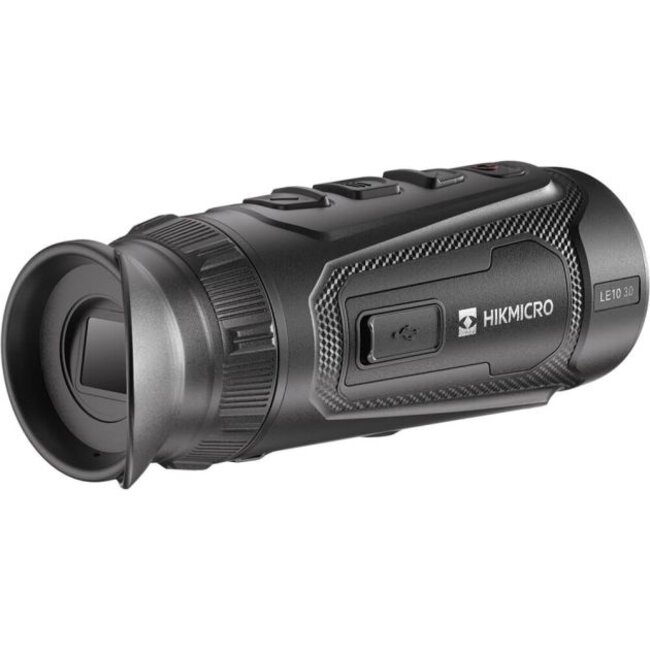

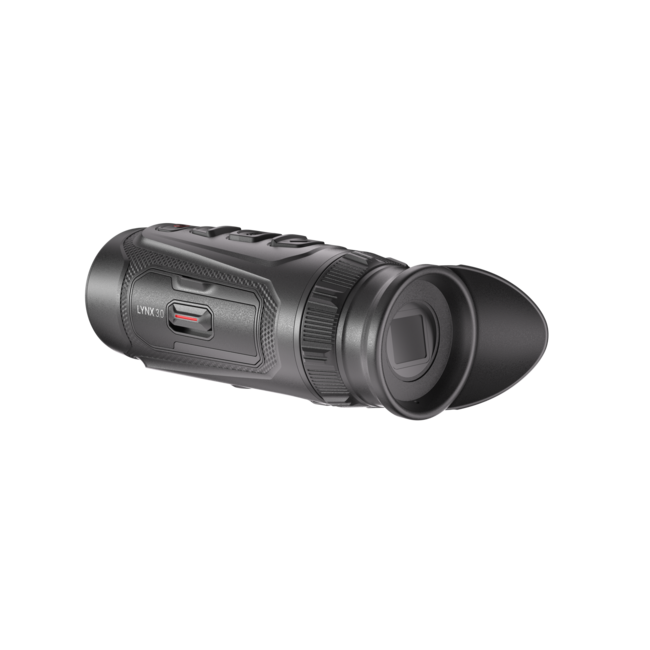

HIKMICRO LYNX LE10 3.0 | HM-TSF2-10Y1G/W1-LE10 3.0 | Portable night vision camera

The Hikmicro Lynx LE10 3.0 is the successor to the popular LE10S model and offers noticeably improved performance. Thanks to the higher thermal sensitivity of <20 mK (compared to 25 mK in the LE10S), the LE10 3.0 detects temperature differences that were previously invisible. Combined with the new Full HD AMOLED screen with 1024 x 768 pixels (the old model had 800 x 600 pixels), this delivers a razor-sharp, high-contrast image that significantly simplifies observation and aiming.

Hikmicro Lynx 3.0 thermal imaging cameras

Compared to the Lynx 2.0 series, Hikmicro's Lynx 3.0 thermal imagers are lighter, more compact, and deliver even higher image quality. The thermal imagers in the Lynx 3.0 series utilize advanced, AI-powered algorithms (Image Pro 3.0) that ensure optimal and highly detailed images. This is evident not only at minimum magnification but also when using digital zoom. Even at maximum magnification, the images remain sharp and clear. Thanks to this high-quality technology, detecting and tracking objects becomes significantly easier, even under challenging weather conditions.

Fluid images

The Hikmicro Shutterless Image System (HSIS) ensures continuous and smooth image display by eliminating image freezing during calibration. This allows you to observe uninterruptedly and not miss a single important moment.

Text continues below the video

User comfort

The Lynx 3.0 further distinguishes itself with its high-quality AMOLED display, on which images are displayed clearly and in detail. Additionally, the image display can be set to two extra color palettes (red monochrome and green monochrome), allowing you to choose from a total of six color palettes. Thanks to the improved, smoother control buttons, the Lynx 3.0 offers maximum user comfort.

Replaceable battery

A major advantage of the HIKMICRO LYNX 3.0 Series is the replaceable battery. Unlike models with a fixed battery, you can easily carry an extra battery, so you never run out of power during long observation or hunting sessions.

This system offers maximum flexibility and reliability in the field. Is the battery empty? Simply swap it out quickly and continue immediately. Ideal for intensive use and situations where charging is not possible.

Text continues below the video

Fast startup within 2 seconds

The HIKMICRO LYNX 3.0 Series boots up in just 2 seconds and is ready for immediate use. This fast startup system is essential in situations where timing is crucial, such as during hunting or when spotting game that is only visible for a short time.

No waiting times and no missed moments: you switch on the thermal imaging camera and have a clear image almost immediately. This makes the LYNX 3.0 Series not only efficient but also extremely reliable in the field.

Compact size

Thanks to its very compact and lightweight design, the HIKMICRO LYNX 3.0 Series fits effortlessly in your jacket or trouser pocket. This makes the thermal imaging camera ideal to carry with you at all times, without it getting in the way while walking, hunting, or observing.

The compact size ensures maximum mobility and comfort, without compromising on performance or image quality. This way, you always have powerful thermal imaging technology at your fingertips.

Text continues below the photo

Internal memory & Phone connections

With a built-in internal memory of no less than 64 GB, there is ample space for storing countless photos and video recordings, with or without audio.

The HIKMICRO LYNX 3.0 Series features a wireless connection to your smartphone via the HIKMICRO Sight app. This allows you to view live images, store photos and videos, and easily adjust settings via your phone.

This connection makes it possible to share observations, analyze images, and manage content directly. This way, you get even more out of your thermal imaging camera, both in the field and at home.

Text continues below the video

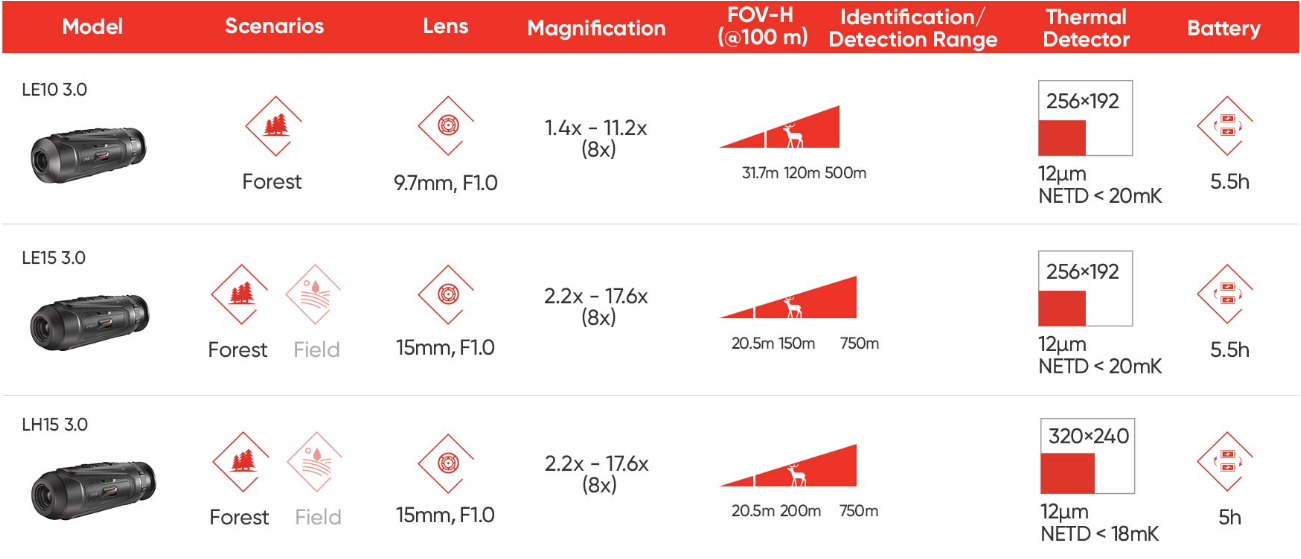

Technical specifications of the Hikmicro Lynx 3.0 LE10 thermal imager

The Hikmicro Lynx 3.0 LE10 is equipped with a 256 × 192 sensor with a pixel pitch of 12 µm. Thanks to a thermal sensitivity (NETD) of less than 20 mK, even the smallest temperature differences are accurately detected. The wide field of view of 18° × 13.6° makes this thermal imager particularly suitable for observation at short distances and in densely vegetated environments, such as forests.

The images are displayed on a 0.39-inch 1024 × 768 AMOLED display, ensuring excellent clarity and detail. With a refresh rate of 50 Hz, you enjoy smooth, stutter-free visuals.

The Hikmicro Lynx 3.0 LE10 features digital magnification up to 8x (from 1.4x to 11.2x) and supports PIP (Picture in Picture) mode, where the zoomed-in image is clearly displayed in a smaller window within the overall image.

Key features

• Ultra-high sensitivity (<20 mK) for extremely detailed thermal images, even with minimal temperature differences.
• New AMOLED screen (1024 × 768) for razor-sharp and vivid display.
• Ergonomic and user-friendly design for easy operation in the field.
• Dual charging method & fast startup for long-lasting and reliable use.
• Customizable settings to fully optimize the visual experience to your liking.
• Automatic screen turn-off saves energy and extends battery life.
• Distance meter
• Hot tracking (detects the highest temperature and marks this spot)

Extra benefits

• IP67 protection class – completely dustproof and water-resistant.
• Detection range of up to 500 meters for excellent performance during remote observation.
• Operating temperature: -30°C to +55°C – suitable for extreme conditions.
• Audio and video recording function for capturing observations in high quality.

Package contents

• Hikmicro Lynx LE10 3.0 thermal imaging camera
• Quick Start Guide
• Cleaning cloth (anti-dust)
• USB cable
• Charger
• 2x Batteries
