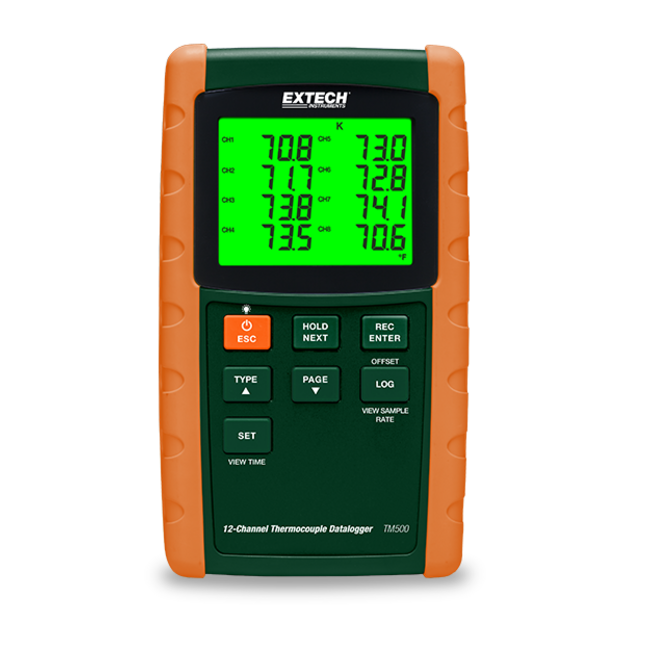

The TM500 is a 12-channel datalogging thermometer. This datalogging thermometer features 6 thermocouple types (J, K, E, T, R, S). It displays CH1 to CH8 or CH9 to CH12 on the screen, and data from all 12 channels can be simultaneously recorded to an SD ca Read more.
Extech's 12-Channel data logging thermometer allows
for a wide range of applications with 6 Thermocouple
types (J, K, E, T, R, S). It displays CH1 to CH8 or CH9
to CH12 on screen and data can be recorded from all
12 channels simultaneously onto an SD card in Excel®
format for further analysis.
Applications (Dependent on Thermocouple type and range):
- Heat distribution in thermal chambers
- Quality Control temperature monitoring
- HVAC and Refrigeration
- Cooling systems - Refrigeration
- Core temperature in ovens
- Automotive design
• 12-Channel temperature data logging with
6 Thermocouple types (J, K, E, T, R, S)
• Simultaneously displays CH1 to CH8 or CH9 to CH12
• Offset adjustment used for zero function or to make
relative measurements
• Memory stores 99 readings manually
• Data logging feature records readings with date and
time stamp on an SD card (included) in Excel® format
• User programmable sampling rate: 1 to 3600 seconds
• Min/Max and Data Hold functions
• Auto power off with disable function
• Complete with 8 AA batteries, 12 general purpose
Type K bead wire temperature probes, SD card, and
hard carrying case
| Type J | -148 to 2102°F (-100 to 1150°C) |
| Type K | -148 to 2372°F (-100 to 1300°C) |
| Type T | -148 to 752°F (-100 to 400°C) |
| Type E | -148 to 1652°F (-100 to 900°C) |
| Type R | 32 to 3092°F (0 to 1700°C) |
| Type S | 32 to 2732°F (0 to 1500°C) |
| Resolution | 0.1°/1° |
| Basic Accuracy | ±0.4% rdg (+1.8°F/+1°C) Types J, K, E, T; ±0.5% rdg (+5°F/+3°C) Types R, S |
| Data logging | Datalog readings on SD card (included) |
| Dimensions/Weight | 8.9 x 4.9 x 2.5" (225 x 125 x 64mm)/ 2.1lbs (944g) |
