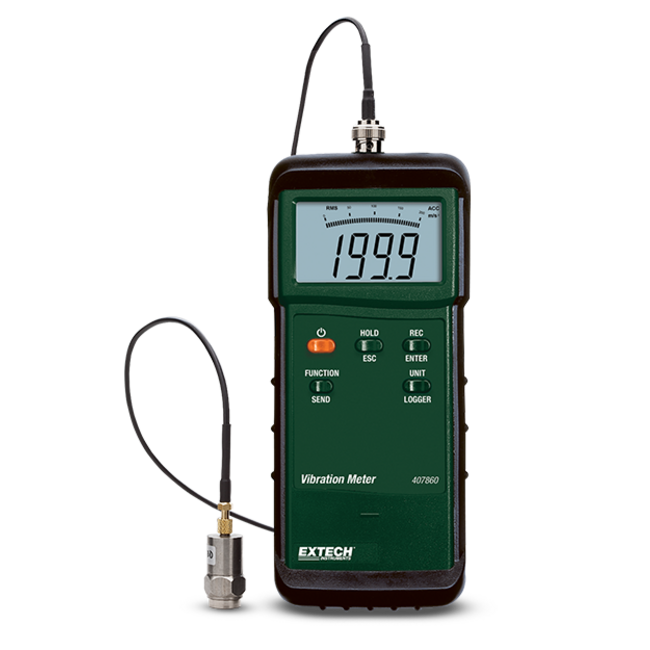

The 407860 Heavy Duty Vibration Meter has a velocity range of 7.87 in./s or 200 mm/s; an acceleration range of 656 ft./s or 200 m/s; and a displacement of 0.078 in. or 2 mm. It features 5% basic accuracy, an external vibration sensor (magnetic or stud) wi Read more.
Measures Acceleration, Velocity and Displacement
Stores the maximum and minimum values for later recall
• Ranges — Acceleration (peak): 656ft/s2 (200m/s2), Velocity (peak): 7.87in/s (200mm/s), Displacement (peak-to-peak): 0.078in (2mm)
• Remote vibration sensor with magnetic adapter on 39"(1m) cable
• Wide frequency range of 10Hz to 1kHz
• Resolution to 2ft/s2 (0.5m/s2), 0.02in/s (0.5mm/s), and 0.001in (0.005)mm
• Basic accuracy of ±(5% + 2 digits)
• RMS or Peak Value measurement modes
• Manual/Auto store/recall up to 500 readings
• Data Hold freezes the reading in the display
• Auto shut-off saves battery life
• 9V battery power or optional AC adapter
• Dimensions: 7.1 x 2.8 x 1.3" (180 x 72 x 32mm); Weight with Probe: 0.87lbs (395g)
• Complete with remote sensor, magnetic mount, 9V battery, protective rubber holster with stand, and hard carrying case
• Motors, bearings
• Fans
• Pumps
• Rotating machinery
• Plant maintenance
