The Hikmicro AD21P acoustic leak detector uses advanced sound processing techniques to detect sound waves from water leaks. These sound waves are converted into sounds and numbers that the human ear can hear. Read more.
The HIKMICRO AD21P acoustic leak detector is a professional leak detector (ground microphone) for accurately locating leaks in compressed air, gas, and vacuum systems. Using ultrasonic technology, the AD21P detects leaks that are neither audible nor visible using traditional methods. This makes the device indispensable for maintenance technicians, installers, and technical services looking to minimize energy loss and prevent malfunctions.
An acoustic leak detector, also known as an ultrasonic leak detector, locates leaks by detecting high-frequency sound waves created when gas or air escapes under pressure. These sound waves are inaudible to the human ear, but the HIKMICRO AD21P converts them into an audible signal. This allows a leak to be located quickly and precisely, even in environments with high background noise.
Text continues below the photo
The HIKMICRO AD21P uses highly sensitive ultrasonic sensors that detect frequencies well above the audible range. This technology allows even the smallest leaks to be detected before they lead to significant energy losses, production downtime, or safety risks.
Key technical advantages:
High sensitivity to small leaks
Precise signal processing
Reliable measurements in industrial environments
The AD21P is widely applicable and suitable for various sectors and applications, including:
Compressed air leak detection
Leaks in compressed air systems often result in high energy costs. The HIKMICRO AD21P allows for quick detection of compressed air leaks, resulting in immediate energy savings.
Gas leak detection
Suitable for detecting leaks in gas pipes and fittings, contributing to a safer working environment and compliance with safety standards.
Vacuum and Pneumatic Systems
The AD21P also offers a reliable solution for maintenance and inspection in vacuum and pneumatic systems.
Preventive Maintenance
Regular inspections with an acoustic leak detector identify problems early, preventing unexpected failures.
The HIKMICRO AD21P is designed for daily professional use. Its compact and ergonomic design ensures a comfortable grip, even during lengthy inspections.
The clear display shows measurements in real time, while the included headphones ensure that leaks can be heard accurately, even in noisy industrial environments.
Benefits for the user:
Lightweight and handy
Fast and easy operation
Direct feedback via image and sound
Text continues below the photo
Leaks in compressed air and gas systems lead to significant energy losses every year. With the HIKMICRO AD21P acoustic leak detector, companies can:
Reduce energy costs
Reduce CO₂ emissions
Making installations work more efficiently
Extending the lifespan of systems
This means that the AD21P often pays for itself quickly and is a sustainable investment for any company.
HIKMICRO is known worldwide for its high-quality measuring and inspection equipment. The AD21P is built to professional quality standards and suitable for intensive use in industrial environments. This guarantees long-term reliability and consistent measurement results.
Professional ultrasonic leak detection
Suitable for compressed air, gas and vacuum
High accuracy and reliability
Ideal for maintenance and inspection
Reduces costs and increases safety
Text continues below the photo

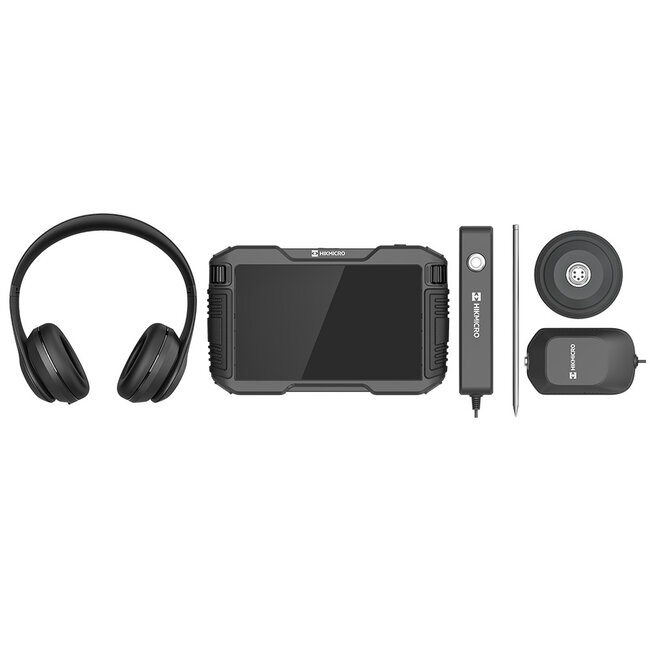

The HIKMICRO AD21P acoustic leak detector (ground microphone) is an advanced, high-performance instrument designed for technicians and plumbers to detect leaks in pipes, water systems, and both residential and commercial buildings. The device uses advanced sound processing techniques to capture sound waves from water leaks, converting them into audible sounds and measurable values.
With four adjustable digital bandpass filters and a gain of up to 80 dB, the AD21P provides precise filtering and amplification of sound frequencies, making it easy to locate leak points. The system uses sound waves and shock waves: when water flows through a leak point, specific sound waves and shock waves are produced, which are received and analyzed by the detector to pinpoint the leak location.
The AD21P is versatile, featuring both a handheld and pick-up sensor, enabling detection of even difficult-to-detect leaks. This helps reduce resource waste and loss and ensures efficient leak detection in pipes and systems.
Text continues below the photo
Frequency range: 150~7500Hz
Signal to Noise Ratio: Manual
Superdetect: Yes
Sensitivity: -29dB, 70mv/g

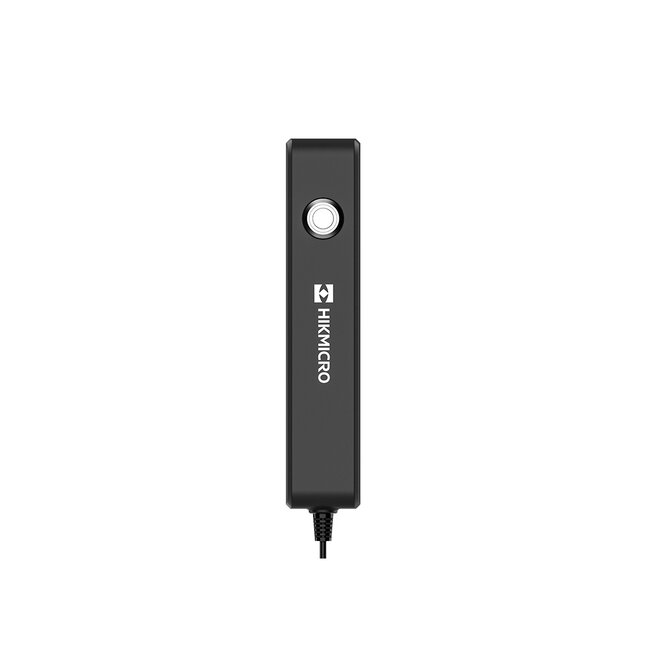

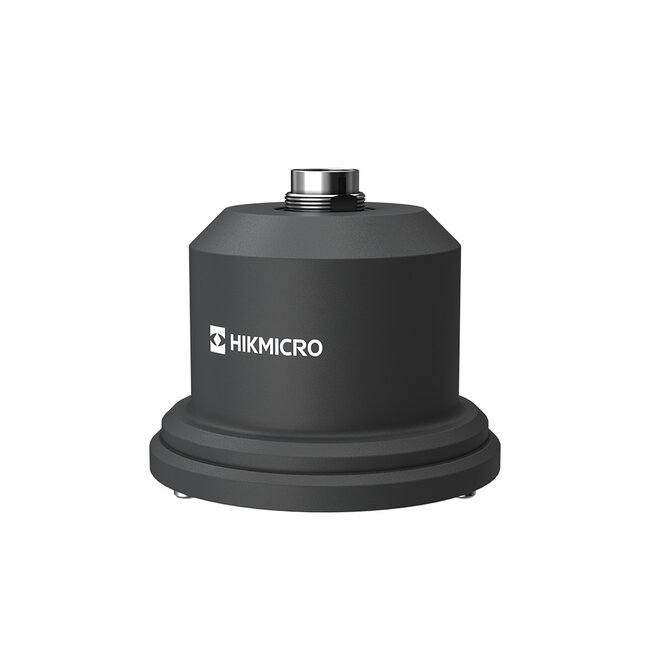

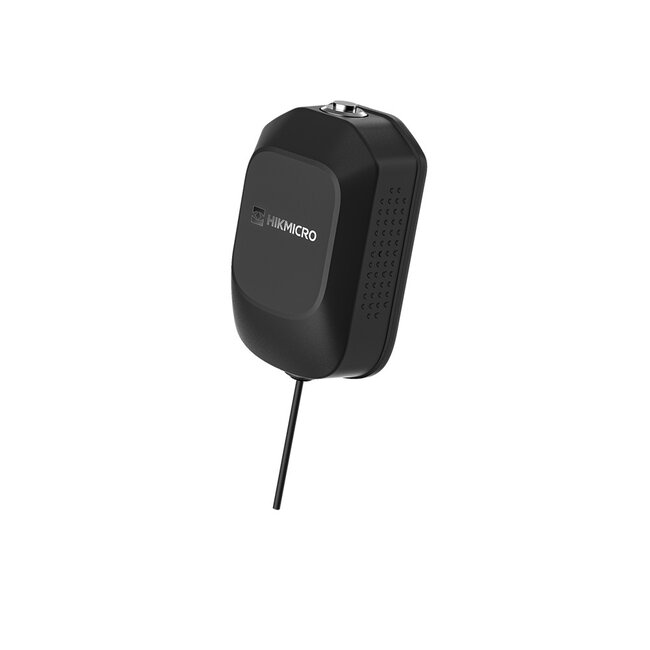

Sensor: Hand sensor, Pick-up sensor
Bandpass filters Within low frequency: 150Hz to 3000Hz
Center frequency within: 3000Hz to 6000Hz
Within high frequency: 4500Hz to 7500Hz
Indoor all-pass: 150Hz to 7500Hz

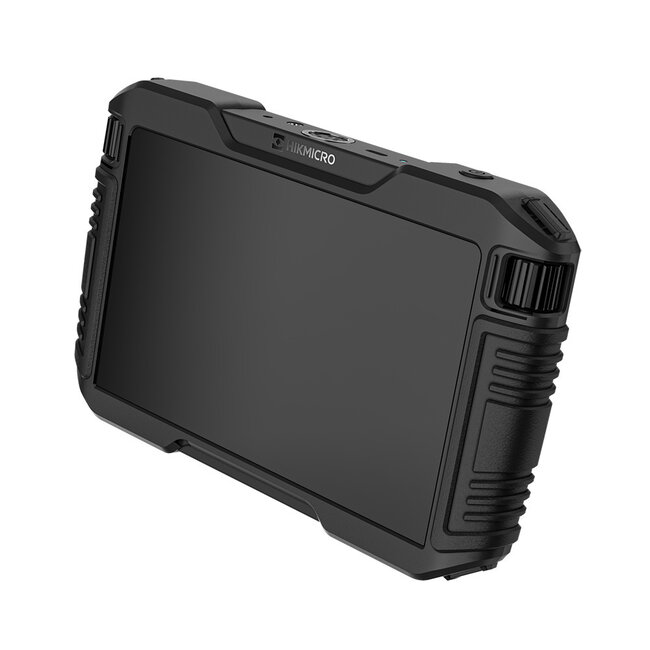

Screen: 1024×600 Resolution，7″LCD Touch Screen
Screen Brightness: Manual/Auto
Storage media: Built-in EMMC (4GB) .wav & JPEG
Audio storage capacity: Approx. 20 hours
Temperature range: -10 °C to 50 °C (14 °F to 122 °F)
Battery type: Rechargeable Li-ion battery
Battery working time: ≥11h
Battery charging time: 3h to 90%, 6h to full charge
Protection Level Main Unit: IP40
Manual sensor: IP54
Pick-up sensor: IP66
