FLIR

Vue™ 336 thermische camera voor drones en sUAS

€1.499,00 Excl. btw
€1.813,79 Incl. btw
19-00607

Met de FLIR Vue™ warmtebeeldcamera heeft u alle belangrijke basis features die u nodig heeft voor drones en sUAS zonder te betalen voor extra functionaliteit

Niet op voorraad
Niet meer leverbaar

Productomschrijving

FLIR Vue™ voor drone en sUAS

De FLIR Vue™ thermische camera is vooraf geconfigureerd zodat deze een optimaal warmtebeeld genereerd voor drone applicaties. De FLIR Vue™ is licht genoeg en zal geen invloed hebben op het zwaartepunt van de drone en zal weinig tot geen impact hebben op de vluchttijd. Met eenvoudige power-in en video-out connecties is de FLIR Vue™ makkelijk te integreren op nagenoeg ieder platform.

Het beste van alles is de MSRP prijs van slechts €1.499 voor 336 resolutie camera's en €2.999 voor 640 camera's. FLIR Vue is nu bereikbaar voor commerciële sUAS drone applicaties!


Overview

Thermal Imager Uncooled VOx Microbolometer
Resolution 640x512 336x256
Lens Options 9 mm; 69° x 56°
13 mm; 45° x 37°
19 mm; 32° x 26°
6.8 mm; 45° × 35°
9 mm; 35° x 27°
13 mm; 25° x 19°
Spectral Band 7.5 - 13.5 μm
Full Frame Rates 30 Hz (NTSC); 25 Hz (PAL)
Exportable Frame Rates 7.5 Hz (NTSC); 8.3 Hz (PAL)
Physical Attributes

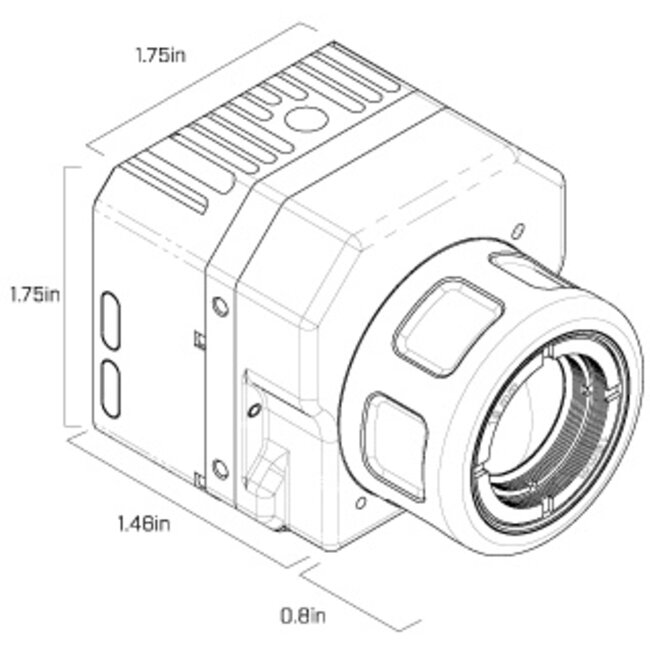

Size 2.26" x 1.75" (including lens)
Weight 3.25 - 4 oz (Configuration Dependant)
Precision Mounting Holes Two M2x0.4 on each of two sides & bottom
One 1/4-20 threaded hole on top
Image Processing & Display Controls
Image Optimization for sUAS Yes
Digital Detail Enhancement Yes - Adjustable in GUI
Invertable Image? Yes - Adjustable in GUI
Polarity Control (black hot/whitehot) & Color Palettes Yes - Adjustable in GUI
Interfacing
Input Power (max 2.5 amp during shutter) 4.0 - 6.0 VDC
Power Dissipation (steady state) <1.2 W ˜1.0 W
Environmental
Operating Temperature Range -20°C to +50°C
Non-Operating Temperature Range -55°C to +95°C
Operational Altitude +40,000 feet


DOWNLOAD FLIR VUE™ DATASHEET



6.8 mm; 45° × 35°

Specificaties

19-00607
336 x 256 pixels
-
-
7.5 - 13.5 µm
7.5 Hz (NTSC); 8.3 Hz (PAL)
-
Handmatig
