De VB450 is een handige, compacte vibratiemeter die trillingsniveaus in industriële machines meet. Lees meer.

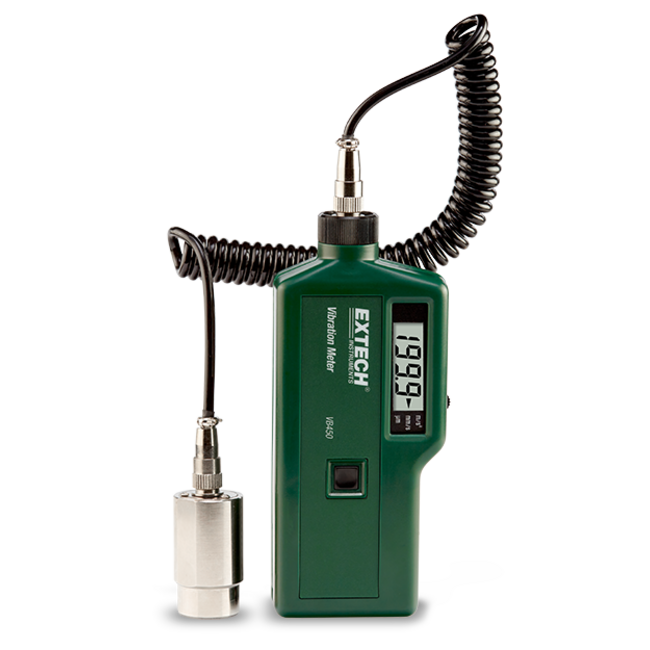

Convenient compact sized Vibration Meter measures vibration
levels in industrial machinery. Misalignment, poor balancing,
structural compromises, and other factors can cause unwanted
vibration increases. VB450 features a wide 10Hz to 1500Hz
frequency range and provides Displacement, Velocity, and
Acceleration measurement.
Applications: To ensure proper installation/maintenance for
consistent productivity and operator safety of:
- Motors, bearings
- Fans, Pumps, Rotating machinery
- Plant maintenance
• Remote vibration sensor with magnetic adapter
on 7.9" (0.2m) coiled cable
• Wide frequency range of 10Hz to 1500Hz
• Velocity (RMS), Acceleration (Peak), and Displacement
(Peak-to-Peak) measurements
• Automatic data hold after measurement button
is released
• Auto power off after 1 minute
• Low battery indicator
• Complete with remote sensor, magnetic mount,
9V battery, wrist strap, and soft case
| Acceleration (Peak) | 0.1 to 199.9 m/s2 |
| Velocity (RMS) | 0.1 to 199.9mm/s |
| Displacement | (Peak-to-Peak) 1 to 1999µm |
| Resolution | 0.1m/s2, 0.1mm/s, 1µm |
| Basic accuracy | ±(5% + 1 digit) |
| Dimensions | 7.3 x 2.7 x 1.2" (185 x 68 x 30mm) |
| Weight | 8.1oz (230g) |
