FLIR

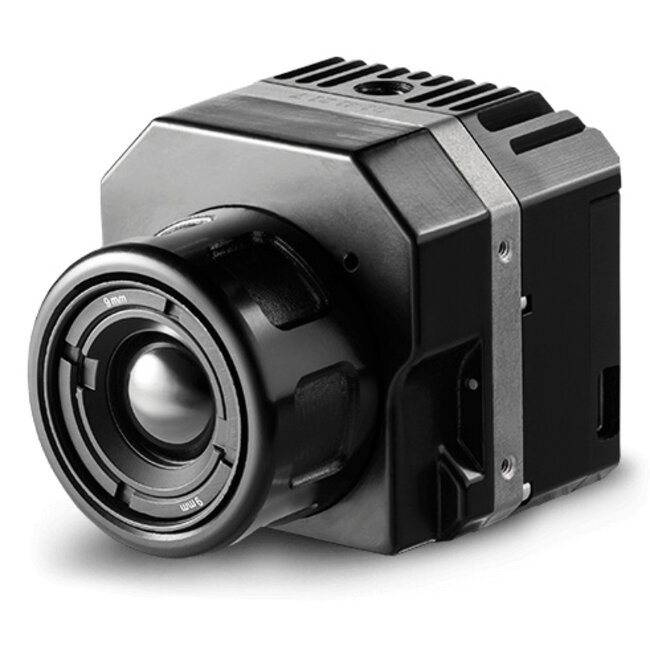

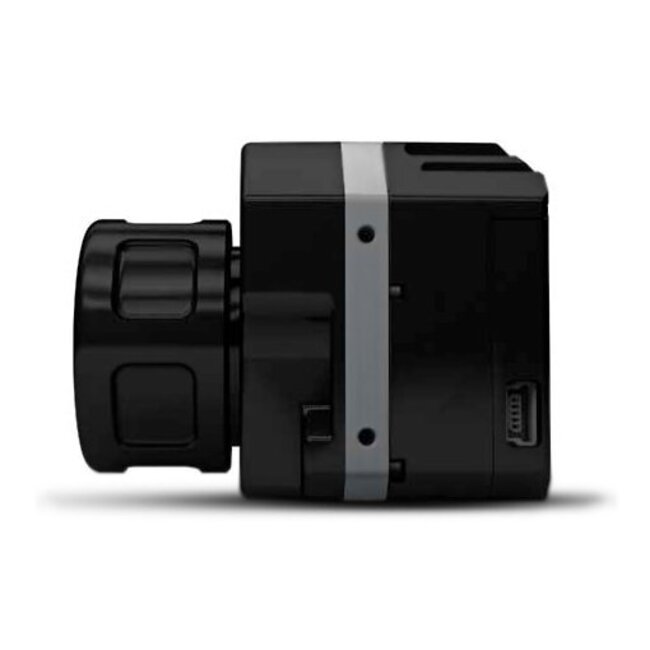

Vue™ 336 Affordable Thermal Imaging for sUAS

€1.499,00 Excl. tax
€1.813,79 Incl. tax

Order the FLIR Vue now and upgrade later to a FLIR Vue PRO with the FLIR Vue Pro upgrade kit! With FLIR Vue™ you get all the thermal imager you need for sUAS operations without having to pay for functionality you'll never use.

Out of stock
Waiting for delivery

Product description

FLIR Vue™ for drones and sUAS

Order the FLIR Vue now and upgrade later to a FLIR Vue PRO with the FLIR Vue Pro upgrade kit!


Pre-configured to give you the best imagery possible from an sUAS, FLIR Vue is light enough that it won't throw off your center of gravity or impact your flight times. With simple power-in and video-out connections, it's easy to integrate and get flying on just about any platform.

Best of all, with MSRPs of only €1,499 for 336 resolution cameras and €2,999 for 640 cameras, FLIR Vue is affordable for today's commercial sUAS operations.

Thanks to FLIR Vue, thermal's done right.


Overview

Thermal Imager Uncooled VOx Microbolometer
Resolution 640x512 336x256
Lens Options 9 mm; 69° x 56°
13 mm; 45° x 37°
19 mm; 32° x 26°
6.8 mm; 45° × 35°
9 mm; 35° x 27°
13 mm; 25° x 19°
Spectral Band 7.5 - 13.5 μm
Full Frame Rates 30 Hz (NTSC); 25 Hz (PAL)
Exportable Frame Rates 7.5 Hz (NTSC); 8.3 Hz (PAL)
Physical Attributes

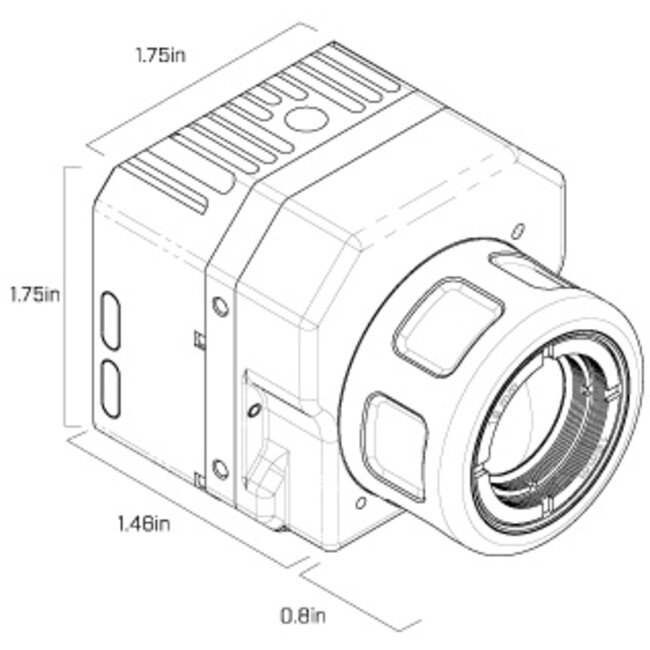

Size 2.26" x 1.75" (including lens)
Weight 3.25 - 4 oz (Configuration Dependant)
Precision Mounting Holes Two M2x0.4 on each of two sides & bottom
One 1/4-20 threaded hole on top
Image Processing & Display Controls
Image Optimization for sUAS Yes
Digital Detail Enhancement Yes - Adjustable in GUI
Invertable Image? Yes - Adjustable in GUI
Polarity Control (black hot/whitehot) & Color Palettes Yes - Adjustable in GUI
Interfacing
Input Power (max 2.5 amp during shutter) 4.0 - 6.0 VDC
Power Dissipation (steady state) <1.2 W ˜1.0 W
Environmental
Operating Temperature Range -20°C to +50°C
Non-Operating Temperature Range -55°C to +95°C
Operational Altitude +40,000 feet


DOWNLOAD FLIR VUE™ DATASHEET



Specifications

19-00606
Thermal Imaging camera
336 x 256 pixels
-
-
The FLIR Vue operates on 5VDC with a steady-state power dissipation of 1.2W
7.5 - 13.5 µm
7.5 Hz (NTSC); 8.3 Hz (PAL)
Divers
-
-
Manual
